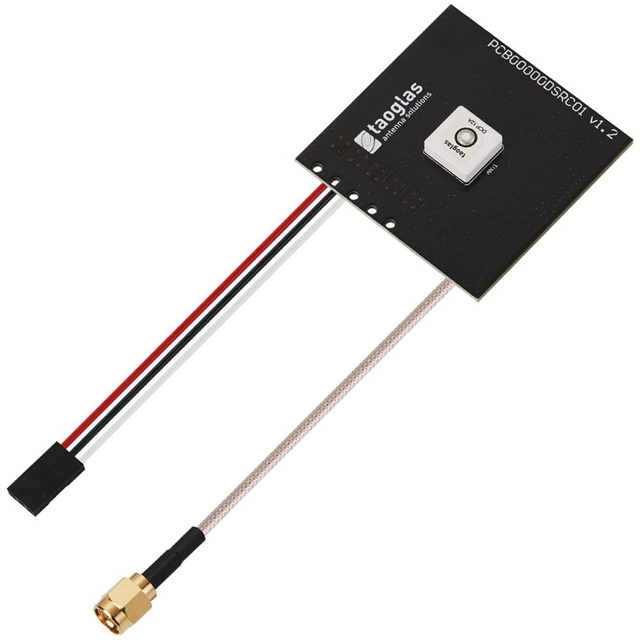

ADCP.12A.01.3000K is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is ACTIVE 5.9GHZ DSRC PATCH ANTENNA. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for ADCP.12A.01.3000K
- Description：ACTIVE 5.9GHZ DSRC PATCH ANTENNA
- Series：-
- Mfr：Taoglas Limited
- Package：Tray
- RF Family/Standard：General ISM
- Frequency Group：SHF (f > 4GHz)
- Frequency (Center/Band)：5.85GHz, 5.925GHz
- Frequency Range：-
- Antenna Type：Ceramic Patch
- Number of Bands：2
- VSWR：-
- Return Loss：-
- Gain：5.5dBi, 5.5dBi
- Features：Cable - 150mm, LNA, Filter
- Termination：SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：0.157" (4.00mm)
- Applications：DSRC
- Power - Max：-
Antennas RF datasheet and documents for ADCP.12A.01.3000K
Antennas RF Overview
The Taoglas ADCP.12A.01.3000K is an embedded ceramic DSRC patch active antenna module designed for dedicated short-range communications. It operates within the 5.85 GHz to 5.925 GHz frequency range, supporting IEEE 802.11p and ETSI C-ITS standards. The unit features a compact 50x50x5 mm form factor with integrated amplification for enhanced signal integrity. It utilizes SMD/SMT termination for direct PCB mounting and maintains a 50 Ohm impedance. The component supports wireless applications requiring low-profile integration in vehicular or infrastructure environments.
Antennas RF Feature Summary
- Integrated active amplification circuitry for improved link budget
- Embedded ceramic construction for structural durability
- Low-profile design suitable for constrained installation spaces
Antennas RF Applications
- DSRC (Dedicated Short-Range Communications)
- V2X (Vehicle-to-Everything) systems
- Intelligent Transportation Systems (ITS)
Antennas RF Procurement Notes
Verify that the specific suffix matches the required regulatory certification region, as active modules often have variant configurations. Confirm interface compatibility with the host RF front-end regarding DC bias requirements and gain specifications. Ensure the procurement channel provides valid RoHS compliance documentation consistent with the manufacturer's current production status.
Antennas RF Selection Notes
Select this model when a passive antenna solution fails to meet sensitivity requirements in high-interference automotive environments. The active design compensates for cable losses and connector mismatches inherent in complex vehicle architectures. Evaluate thermal management capabilities of the host system, as the integrated amplifier generates heat during continuous transmission operations.
Antennas RF Part Context
This part belongs to the Taoglas embedded antenna portfolio, specifically targeting intelligent transportation and automotive connectivity sectors. It complements passive ceramic antennas by offering higher gain through active components. The product line addresses the growing demand for reliable V2X communication hardware in modern connected vehicles.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Active antenna modules with specific gain profiles and regulatory certifications typically require direct engineering validation before substitution.
