ADFGP.50A.07.0100C

Antennas RF Overview

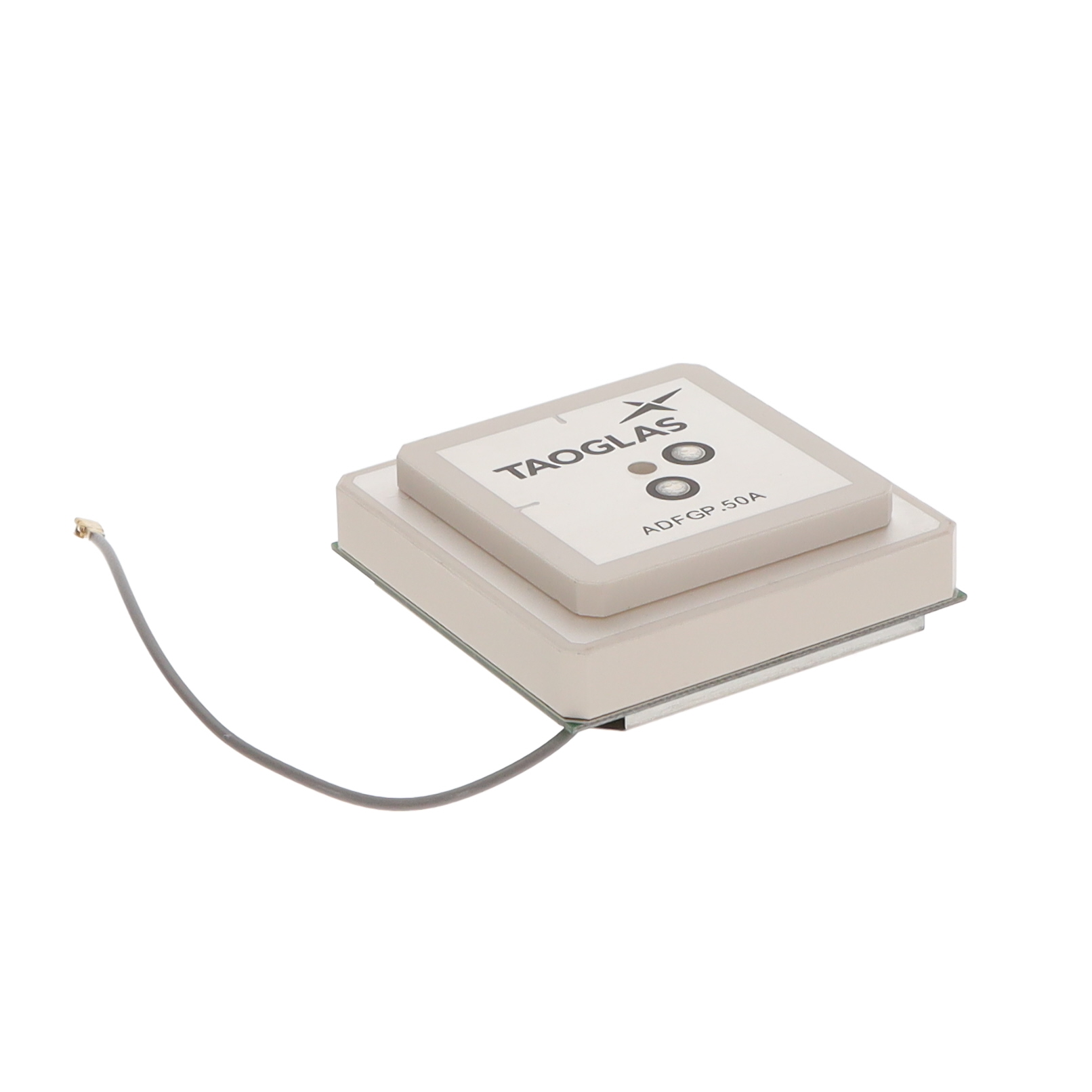

The ADFGP.50A.07.0100C is a passive GNSS stacked patch antenna manufactured by Taoglas Limited, designed for high-precision positioning applications. It operates at a center frequency of 1.602 GHz with a gain of 3.2 dBi and right-hand circular polarization. The component features a ceramic construction and utilizes an integrated U.FL (UMCC) or I-PEX MHF1 surface-mount connector for RF interfacing. This compact design supports multiple global navigation satellite systems including GPS, GLONASS, Galileo, BeiDou, and QZSS, ensuring reliable signal reception across standard L1 bands.

Antennas RF Feature Summary

• Supports multi-constellation GNSS protocols including GPS, GLONASS, Galileo, BeiDou, and QZSS
• Features right-hand circular polarization for improved signal integrity
• Utilizes a compact ceramic stacked patch design for high precision
• Integrates a surface-mount U.FL/UMCC connector for direct PCB attachment

Antennas RF Applications

• High-precision vehicle tracking systems
• Smartphone and mobile device positioning modules
• Wearable technology requiring accurate location data
• IoT devices utilizing GNSS for asset management

Antennas RF Procurement Notes

Verify the specific connector variant required during procurement, as the part designation may correspond to different connector types such as U.FL or I-PEX MHF1 depending on the exact sub-model configuration. Ensure compatibility with the target PCB footprint and impedance matching requirements before finalizing orders. Cross-reference official Taoglas documentation to confirm mechanical dimensions and mounting specifications for the specific revision being purchased.

Antennas RF Selection Notes

Select this component when a low-profile, high-gain solution is required for space-constrained portable electronics. The integrated connector simplifies assembly compared to antennas requiring external cable routing. Consider the operating temperature range and environmental sealing requirements if the application involves harsh conditions. Evaluate the need for active versus passive variants based on the specific sensitivity requirements of the receiver circuitry.

Antennas RF Part Context

This antenna belongs to Taoglas's portfolio of miniature GNSS solutions designed for consumer electronics and IoT applications. It complements other surface-mount antennas in the series by offering enhanced gain through its stacked patch architecture. The product line focuses on providing reliable performance in small form factors suitable for modern handheld devices and compact tracking hardware.

Antennas RF Replacement Considerations

Direct substitutes include other Taoglas GNSS patch antennas with similar frequency ranges and connector types. Verify that alternative models maintain the same right-hand circular polarization and impedance characteristics to ensure system compatibility without redesigning the RF front-end.
