ADHV4702-1BCPZ-R7

Overview

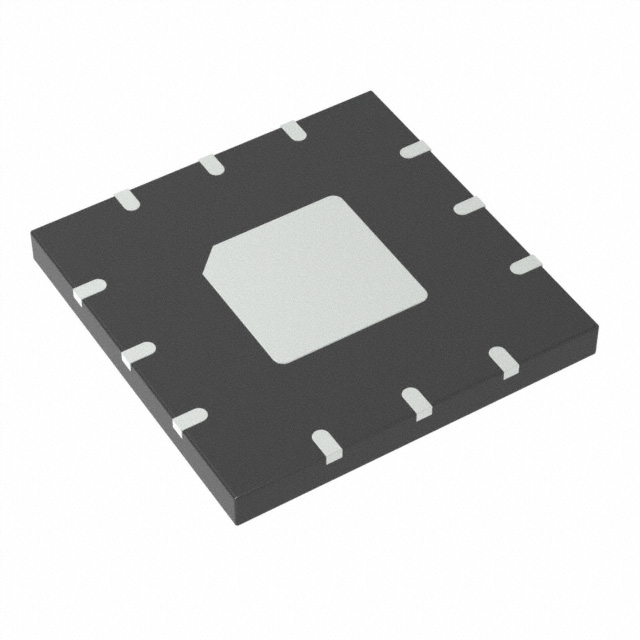

The ADHV4702-1BCPZ-R7 is a high-voltage, unity-gain stable precision operational amplifier manufactured by Analog Devices Inc. It operates on supply voltages ranging from ±12 V to ±110 V dual-supply or up to 220 V asymmetrical span. The device features a typical slew rate of 74 V/µs and a small-signal bandwidth of 10 MHz. Key electrical characteristics include a maximum input offset voltage of 1 mV, a maximum input bias current of 2 pA, and a typical open-loop gain of 170 dB. It is housed in a 12-lead, 7 mm × 7 mm LFCSP package with an exposed thermal pad.

Feature Summary

• High common-mode rejection ratio and open-loop gain for precision signal processing
• Low input bias current and low input offset voltage drift for DC accuracy
• Resistor-adjustable quiescent current capability for power optimization
• Integrated shutdown mode and temperature monitor output

Applications

• High-side current sensing
• Automated test equipment
• Piezotransducers
• Digital-to-analog converter (DAC) output buffers
• Light detecting and ranging (LiDAR), avalanche photodiode (APD), single photon avalanche diode (SPAD) biasing

Procurement Notes

Verify the specific ordering suffix '-R7' against official manufacturer documentation to confirm reel packaging specifications and tape-and-reel dimensions. Ensure that the component matches the exact datasheet revision required for your design constraints. Cross-reference the part number with authorized distributors to confirm availability and authenticity before procurement.

Selection Notes

Select this component when applications require high-voltage operation up to 220 V combined supply rails alongside high precision metrics. Consider the 12-lead LFCSP package size if board space is limited. Evaluate the resistor-adjustable quiescent current feature if power consumption needs to be optimized below the standard 3 mA operating level.

Part Context

This part belongs to the ADHV4702 series of high-voltage precision amplifiers. It represents a specialized solution within Analog Devices' portfolio designed for demanding industrial and scientific environments where both high voltage handling and low noise performance are critical requirements.

Replacement Considerations

Consult official Analog Devices documentation for confirmed substitute part numbers. Verify pin compatibility and electrical specifications before replacing.
