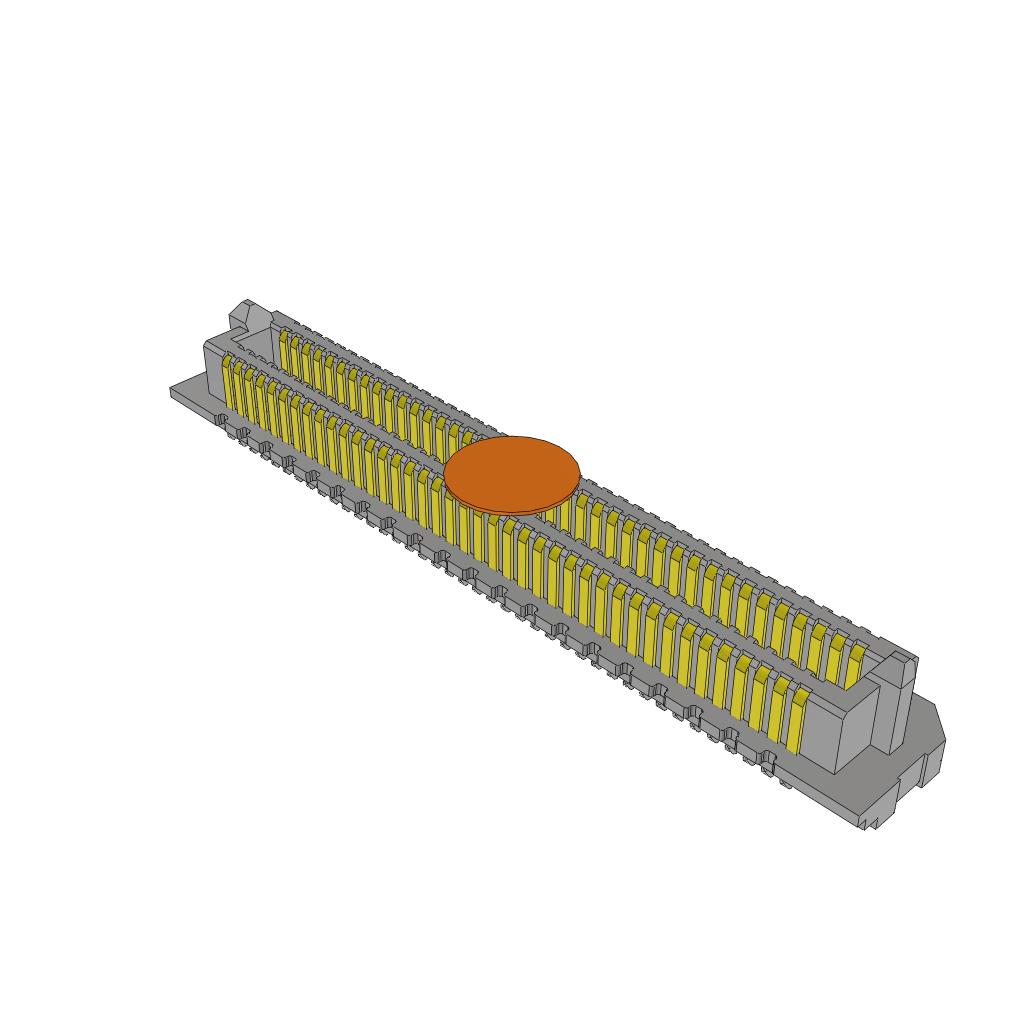

Arrays, Edge Type, Mezzanine (Board To Board) ADM6-40-01.5-S-4-2-TR product image

ADM6-40-01.5-S-4-2-TR

$10.04

Description：0.635 MM ACCELERATE HD HIGH-DENS
Series：AcceleRate® ADM6
Mfr：Samtec Inc.
Package：Tape & Reel (TR)

SKU:60cec0e0e781 Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: Samtec Inc.

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ADM6-40-01.5-S-4-2-TR is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is 0.635 MM ACCELERATE HD HIGH-DENS. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for ADM6-40-01.5-S-4-2-TR

Description：0.635 MM ACCELERATE HD HIGH-DENS
Series：AcceleRate® ADM6
Mfr：Samtec Inc.
Package：Tape & Reel (TR)
Connector Type：High Density Array, Male
Number of Positions：160
Pitch：0.025" (0.64mm)
Number of Rows：4
Mounting Type：Surface Mount
Features：-
Contact Finish：Gold
Contact Finish Thickness：30.0µin (0.76µm)
Mated Stacking Heights：5mm, 9mm
Height Above Board：0.134" (3.40mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for ADM6-40-01.5-S-4-2-TR

ADM6-40-01.5-S-4-2-TR
