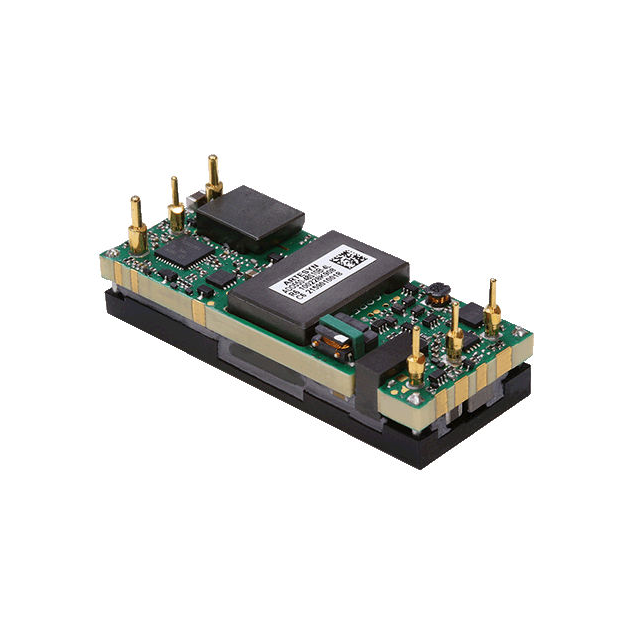

ADO500-48S10-4L

ADO500-48S10-4L is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is 500W 45 - 56VIN, 10.1V 50A, EIGH. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for ADO500-48S10-4L

• Description：500W 45 - 56VIN, 10.1V 50A, EIGH
• Series：ADO500 (500W)
• Mfr：ARTESYN / Advanced Energy
• Package：Box
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：45V
• Voltage - Input (Max)：56V
• Voltage - Output 1：10.1V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：50A
• Power (Watts)：505 W
• Voltage - Isolation：800 V
• Applications：ITE (Commercial)
• Features：Remote On/Off
• Operating Temperature：-20°C ~ 85°C
• Efficiency：96.50%
• Mounting Type：Through Hole
• Package / Case：Eighth Brick
• Size / Dimension：2.30" L x 0.91" W x 0.48" H (58.4mm x 23.2mm x 12.2mm)
• Supplier Device Package：Eighth Brick
• Control Features：Enable, Active Low
• Approval Agency：CE, cUL, TUV, UL
• Standard Number：60950-1; 62368-1
• Grade：-
• Qualification：-
