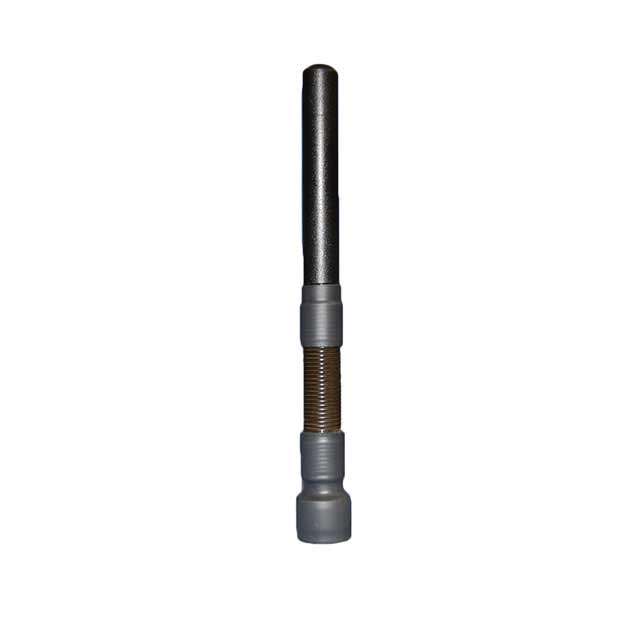

ADP24D51SBFRTM

$439.93

Description：2400/5100 MHZ DUALBAND SPNG BASE
Series：-
Mfr：Antenna Technologies Limited Company
Package：Box

SKU:b0b96f47c141 Category: RF Antennas Brand: Antenna Technologies Limited Company

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：2400/5100 MHZ DUALBAND SPNG BASE
Series：-
Mfr：Antenna Technologies Limited Company
Package：Box
RF Family/Standard：-
Frequency Group：-
Frequency (Center/Band)：2.4GHz, 5.1GHz
Frequency Range：2.2GHz ~ 2.7GHz, 4.1GHz ~ 6GHz
Antenna Type：-
Number of Bands：2
VSWR：2
Return Loss：-
Gain：2.5dBi
Features：-
Termination：TNC Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：-
Applications：-
Power - Max：-

Download product information

ADP24D51SBFRTM

Overview

The ADP24D51SBFRTM is a dual-band RF antenna designed for operation in the 2400 MHz and 5100 MHz frequency ranges. It features a TNC male connector termination, facilitating secure attachment to compatible RF systems. The component utilizes a connector mount style, allowing for direct integration into equipment chassis or panels without requiring additional bracketry. This configuration supports stable signal transmission and reception across the specified dual-frequency bands, suitable for applications demanding reliable wireless connectivity in both lower and upper microwave spectrum segments.

Feature Summary

Dual-band capability supporting 2400 MHz and 5100 MHz operations
TNC male connector termination for standardized interface compatibility
Connector mount design enabling direct panel or chassis installation

Applications

Commercial enterprise wireless infrastructure
Defense wireless communication systems
Dual-band RF equipment integration

Procurement Notes

Verify that the TNC male connector orientation matches your system's receptacle requirements. Confirm RoHS3 compliance status if environmental regulations apply to your deployment. Ensure the mounting interface aligns with the connector mount specification to avoid mechanical incompatibility during assembly.

Selection Notes

Choose this model when dual-band performance at 2.4 GHz and 5.1 GHz is required. The TNC male interface dictates compatibility with existing TNC female ports. Consider the connector mount form factor for space-constrained installations where direct panel mounting is preferred over whip or base station configurations.

Part Context

This component belongs to Antenna Technologies Limited Company's portfolio of RF antennas tailored for commercial and defense sectors. The manufacturer specializes in wireless application designs, positioning this part within their broader range of specialized antenna solutions for enterprise and military-grade communications.
