ADP5072ACBZ-R7
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：IC REG BOOST ADJ DL 20WLCSP
- Series：-
- Mfr：Analog Devices Inc.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Function：Step-Up
- Output Configuration：Positive and Negative (Dual Rail)
- Topology：Boost
- Output Type：Adjustable
- Number of Outputs：2
- Voltage - Input (Min)：2.85V
- Voltage - Input (Max)：5.5V
- Voltage - Output (Min/Fixed)：0.8V
- Voltage - Output (Max)：35V
- Current - Output：600mA, 1A
- Frequency - Switching：1.2MHz, 2.4MHz
- Synchronous Rectifier：Yes
- Operating Temperature：-40°C ~ 125°C (TJ)
- Mounting Type：Surface Mount

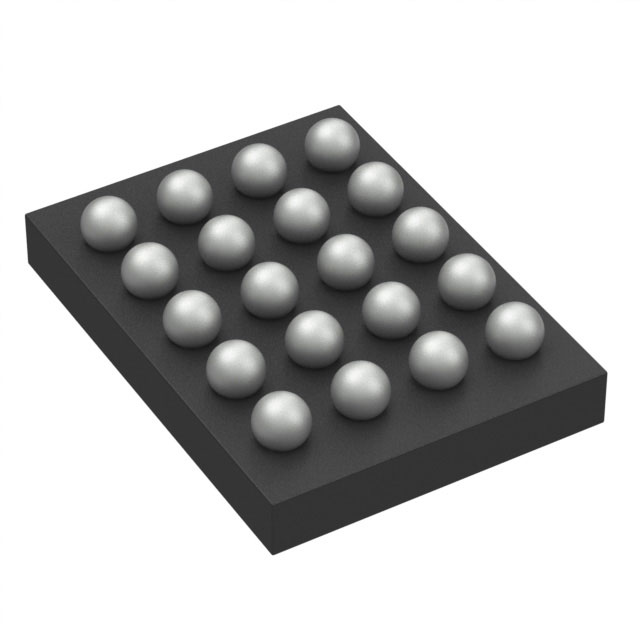

- Package / Case：20-UFBGA, WLCSP
- Supplier Device Package：20-WLCSP (1.61x2.18)
- Grade：-
- Qualification：-
Download product information
Overview
The ADP5072ACBZ-R7 is a uPMU V+/V- switching regulator designed for bipolar applications. It operates with an input voltage range of 2.85 V to 15 V and delivers up to 1 A output current. The device features adjustable output voltages, a shutdown function, and a switching frequency between 1.2 MHz and 2.4 MHz. It functions within a temperature range of -40°C to +125°C and is housed in an LFCSP-16 package.
Feature Summary
- Integrated dual-output switching regulator architecture optimized for bipolar signal chains
- Adjustable output voltage capability supporting flexible power rail configurations
- High-efficiency DC-DC conversion with integrated soft-start functionality
Applications
- Powering bipolar ADCs
- Powering bipolar DACs
- Powering operational amplifiers
Procurement Notes
Verify the specific suffix R7 indicates reel packaging when sourcing. Confirm the ACBZ variant matches the required thermal and electrical specifications for your design. Check official Analog Devices documentation for the latest RoHS compliance status and moisture sensitivity levels before finalizing procurement plans.
Selection Notes
Select this component when designing circuits requiring simultaneous positive and negative supply rails from a single low-voltage source. It is suitable for systems needing high efficiency and compact footprints. Ensure the load current requirements do not exceed the 1 A limit and that the operating temperature falls within the specified industrial range.
Part Context
This part belongs to the ADP507x family of ultra-low noise, high-efficiency power management ICs. These devices are engineered to provide clean power for sensitive analog components. The ACBZ designation specifies the commercial temperature grade and the LFCSP-16 surface-mount package type used for space-constrained PCB layouts.
Replacement Considerations
Consult the ADP5073ACPZ-R7 or ADP5074ACPZ-R7 datasheets for higher current alternatives within the same family. Verify pin compatibility and thermal performance before substituting.
