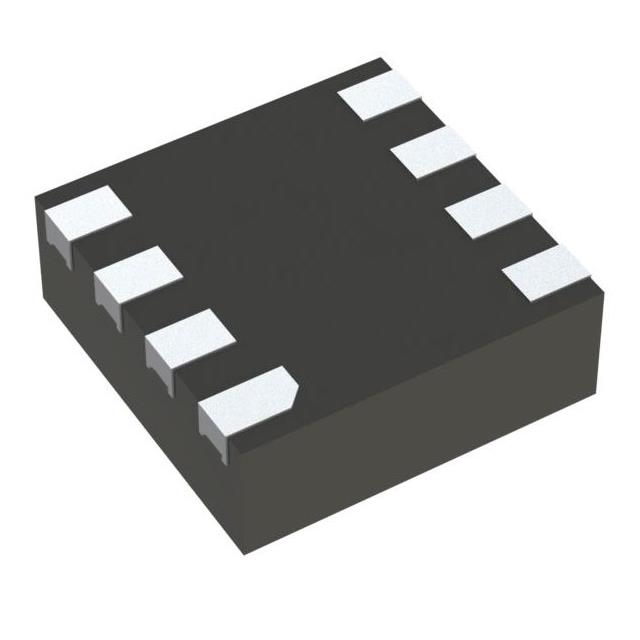

ADPL16000CATA+T

$2.69

Description：IC REG BUCK ADJ 0.4V 8TDFN
Series：-
Mfr：Analog Devices Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:1cf8173f806b Category: Voltage Regulators - DC DC Switching Regulators Brand: Analog Devices Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC REG BUCK ADJ 0.4V 8TDFN
Series：-
Mfr：Analog Devices Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Function：Step-Down
Output Configuration：Positive
Topology：Buck
Output Type：Adjustable
Number of Outputs：1
Voltage - Input (Min)：4.5V
Voltage - Input (Max)：60V
Voltage - Output (Min/Fixed)：0.9V
Voltage - Output (Max)：53.4V
Current - Output：0.4mA
Frequency - Switching：500kHz
Synchronous Rectifier：Yes
Operating Temperature：-40°C ~ 125°C (TA)
Mounting Type：Surface Mount
Package / Case：8-WFDFN
Supplier Device Package：8-TDFN (2x2)
Grade：-
Qualification：-

Download product information

ADPL16000CATA+T

Overview

The ADPL16000CATA+T is a high-voltage synchronous step-down DC-DC converter manufactured by Analog Devices. It operates within an input voltage range of 4.5V to 60V and delivers up to 400mA of load current. The device features an adjustable output voltage ranging from 0.9V to 0.89 times the input voltage. It utilizes a peak current mode control architecture with configurable PWM or PFM operation modes. The component is housed in an 8-pin, 2mm x 2mm TDFN-CU package and supports an operating temperature range of -40°C to +125°C.

Feature Summary

Integrates internal MOSFETs for efficient synchronous rectification without external Schottky diodes
Supports flexible system power rails through wide input voltage capability and adjustable output options
Configurable MODE pin allows switching between PWM and PFM control modes for optimized efficiency
Includes built-in protection mechanisms such as over-temperature shutdown and monotonic startup

Applications

Industrial sensor power supplies
HVAC and building control systems
High-voltage LDO replacement circuits
General-purpose point-of-load (POL) regulation

Procurement Notes

Verify the specific suffix 'CATA' against official Analog Devices documentation to confirm the exact output configuration and tape-and-reel specifications. Ensure compatibility with the required input voltage range and thermal management requirements for the target application environment before finalizing procurement orders.

Selection Notes

Select this component when a compact solution is needed for converting high input voltages down to lower regulated levels. The adjustable output feature provides design flexibility compared to fixed-voltage variants. Consider the PFM mode for applications requiring improved light-load efficiency and reduced standby power consumption.

Part Context

This part belongs to the ADPL16000 series of high-voltage DC-DC converters designed for robust industrial environments. The series offers various output configurations, including fixed 3.3V and 5V options alongside adjustable versions. The CATA variant specifically denotes the adjustable output configuration within this product family.
