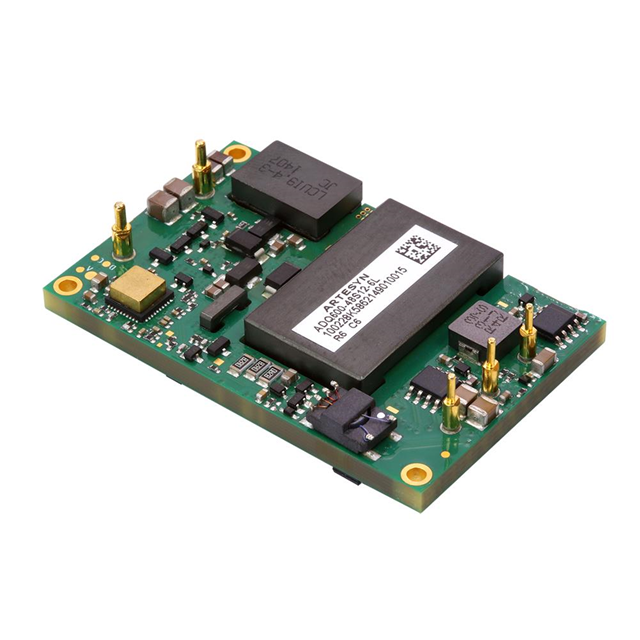

ADQ600B-48S12B-6LI

ADQ600B-48S12B-6LI is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is 600W, 36 - 75VIN, 12V@50A, QUART. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for ADQ600B-48S12B-6LI

• Description：600W, 36 - 75VIN, 12V@50A, QUART
• Series：ADQ600 (600W)
• Mfr：ARTESYN / Advanced Energy
• Package：Box
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：40V
• Voltage - Input (Max)：60V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：50A
• Power (Watts)：600 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Baseplate, Remote On/Off
• Operating Temperature：-40°C ~ 85°C
• Efficiency：95.60%
• Mounting Type：Through Hole
• Package / Case：Quarter Brick
• Size / Dimension：2.30" L x 1.45" W x 0.52" H (58.4mm x 36.8mm x 13.3mm)
• Supplier Device Package：Quarter Brick
• Control Features：Enable, Active Low
• Approval Agency：CE, cUL, TUV, UL
• Standard Number：60950-1; 62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for ADQ600B-48S12B-6LI
