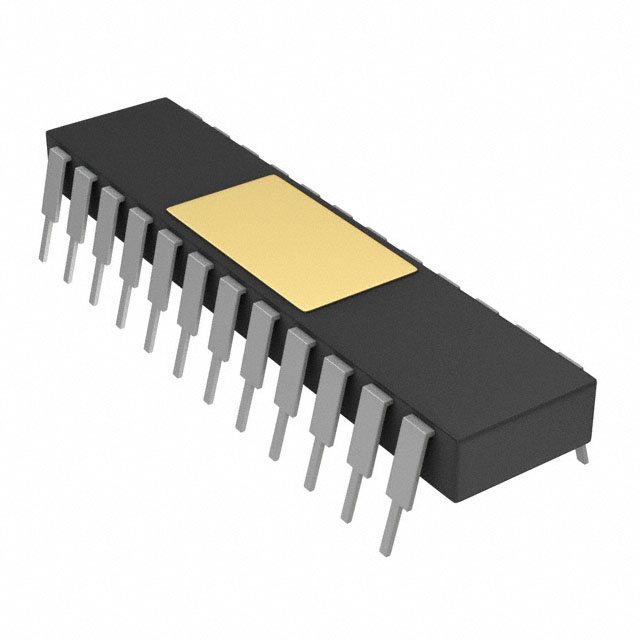

ADS7800AH

Analog To Digital Converters (ADC) Overview

The ADS7800AH is a 12-bit successive approximation register (SAR) analog-to-digital converter (ADC) manufactured by Texas Instruments. It features a single-ended input and parallel interface, operating with a sampling rate of 333 kS/s. The device requires both analog and digital power supplies within the range of 4.75 V to 5.25 V. Key performance metrics include a signal-to-noise ratio (SNR) of 73 dB and a signal-to-noise and distortion ratio (SINAD) of 72 dB. Differential nonlinearity (DNL) is specified at +/- 0.75 LSB, while integral nonlinearity (INL) is +/- 0.5 LSB. It operates within a temperature range of -40°C to +85°C and is housed in an SOIC-24 package.

Analog To Digital Converters (ADC) Feature Summary

• Integrated internal voltage reference eliminates external component requirements.
• High-speed 12-bit resolution with 333 kS/s sampling capability.
• Parallel digital interface for direct microprocessor connection.

Analog To Digital Converters (ADC) Applications

• Industrial process control systems
• Data acquisition modules
• Portable instrumentation

Analog To Digital Converters (ADC) Procurement Notes

Verify the specific suffix 'AH' against the official datasheet to confirm temperature grade and package variant. Ensure compatibility with existing board layouts regarding the SOIC-24 footprint and pin configuration. Cross-reference the manufacturer's latest documentation for any updates to electrical specifications or recommended operating conditions prior to finalizing procurement orders.

Analog To Digital Converters (ADC) Selection Notes

Select this component when a 12-bit resolution and parallel interface are required for moderate-speed applications. Consider the single-ended input architecture and 5V supply requirement. Evaluate the thermal performance within the industrial temperature range if deployed in harsh environments. Compare against other SAR ADCs if differential inputs or lower power consumption are critical system constraints.

Analog To Digital Converters (ADC) Part Context

The ADS7800 belongs to the ADS7800 series of high-speed, low-power 12-bit ADCs from Texas Instruments. This series is designed for applications requiring fast conversion times and straightforward digital interfacing. The ADS7800AH represents a specific variant within this family, distinguished by its industrial temperature rating and surface-mount packaging options suitable for automated assembly processes.

Analog To Digital Converters (ADC) Replacement Considerations

Consult the official datasheet for confirmed substitute part numbers. Verify pinout compatibility and electrical parameter equivalence before replacing the ADS7800AH with alternative components from the same or different manufacturers.
