ADT04030R5

Overview

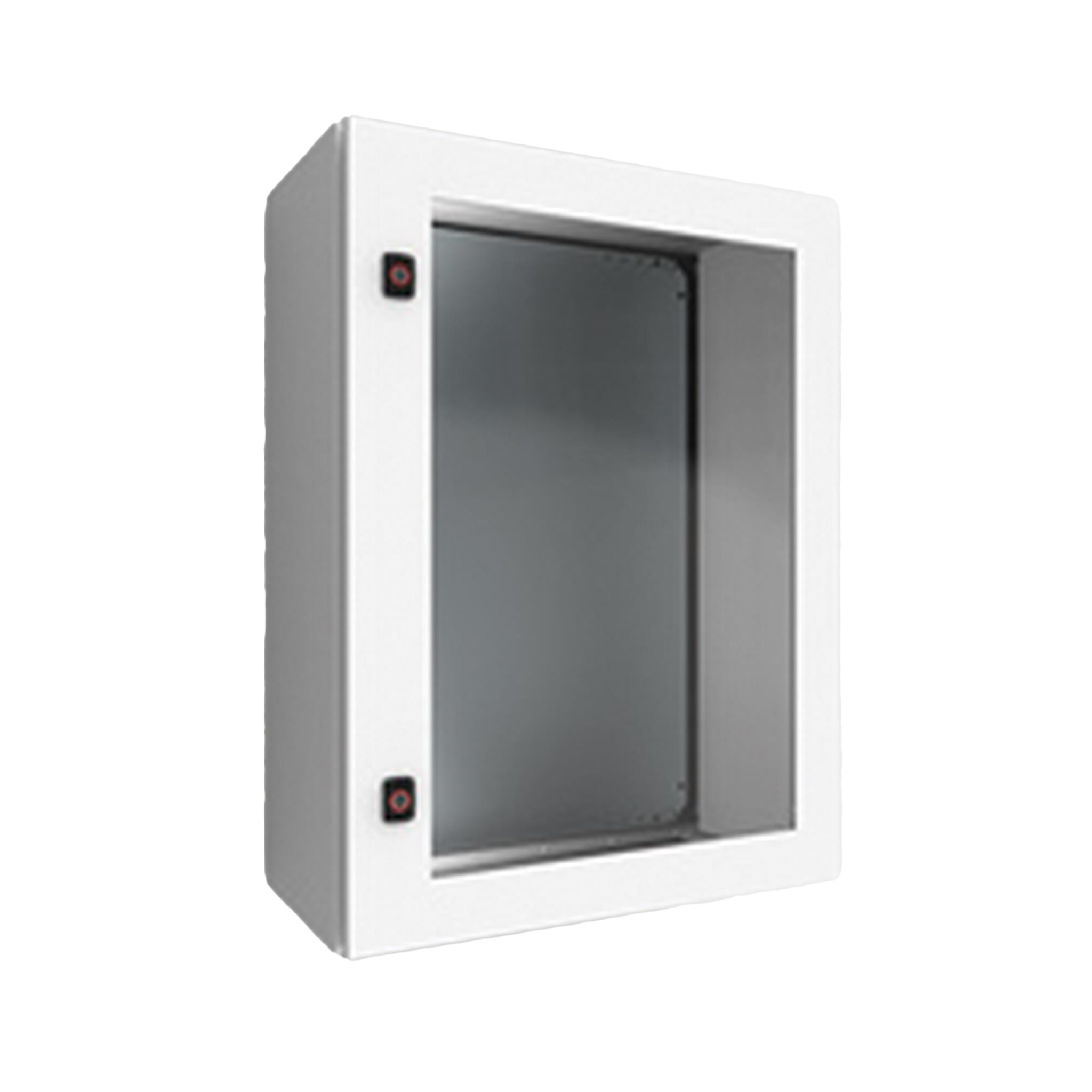

The ADT04030R5 is a glazed door accessory designed for nVent HOFFMAN MAS series enclosures, specifically the MAS04030 model. It features a transparent acrylic window to allow visibility of internal components while maintaining an IP55 ingress protection rating. The door frame is constructed from 1.2 mm mild steel and includes a 3mm double bit lock mechanism. Key dimensions include a height of 400 mm, width of 300 mm, depth of 259 mm, and mounting hole spacing of 143 mm.

Feature Summary

• Transparent acrylic window for visual inspection
• IP55 rated enclosure protection
• Interchangeable standard locking mechanism

Applications

• nVent HOFFMAN MAS04030 enclosures
• Industrial control panel visualization
• Equipment housing with visibility requirements

Procurement Notes

Verify compatibility with the specific MAS04030 enclosure model before procurement. Confirm that the required locking mechanism aligns with existing standard locks used in the assembly. Ensure the IP55 rating meets the environmental protection needs of the installation site. Check physical dimensions against available space constraints.

Selection Notes

Select this component when visual access to internal wiring or indicators is required without compromising environmental sealing. The transparent acrylic material provides durability while allowing light transmission. Consider the mild steel construction for structural integrity in industrial environments. Verify that the 400x300 mm size matches the target enclosure specifications.

Part Context

This part belongs to the nVent HOFFMAN general accessories category, specifically designed as a replacement or upgrade for standard doors on MAS series enclosures. It complements the brand's range of steel and non-metallic enclosure solutions. The product supports modular enclosure configurations by providing a secure, visible front panel option.

Replacement Considerations

Compatible with all nVent HOFFMAN standard locks due to interchangeable design.
