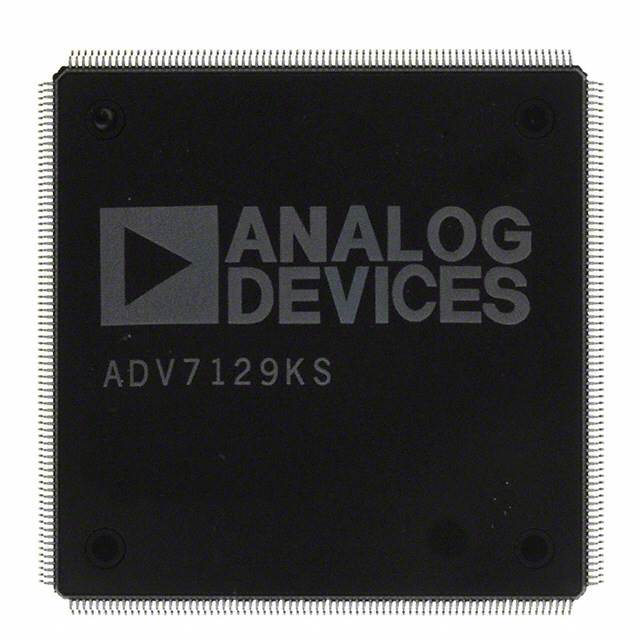

ADV7129KS

$516.60

Description：IC DAC VIDE COLOR 192BIT 304PQFP
Series：-

SKU:14c5832b55a4 Category: Digital to Analog Converters (DAC) Brand: Analog Devices Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ADV7129KS is listed in the Digital To Analog Converters range at ChipApex. The manufacturer field lists Analog Devices Inc.. Its product description is IC DAC VIDE COLOR 192BIT 304PQFP. Review the specifications below when checking this part for your BOM.

Digital To Analog Converters specifications for ADV7129KS

Description：IC DAC VIDE COLOR 192BIT 304PQFP
Series：-
Mfr：Analog Devices Inc.
Package：Bulk
Number of Bits：-
Number of D/A Converters：-
Settling Time：-
Output Type：-
Differential Output：-
Data Interface：-
Reference Type：-
Voltage - Supply, Analog：-
Voltage - Supply, Digital：-
INL/DNL (LSB)：-
Architecture：-
Operating Temperature：-
Package / Case：-
Supplier Device Package：-
Mounting Type：-
Grade：-

Digital To Analog Converters datasheet and documents for ADV7129KS

ADV7129KS

Digital To Analog Converters Overview

The ADV7129KS is a monolithic CMOS video DAC designed for ultrahigh-resolution graphics. It features three 8-bit DACs operating at 360 MHz, supporting 24-bit true-color output with an onboard PLL and internal voltage reference. The device accepts a 192-bit pixel port via 8:1 multiplexing, enabling screen resolutions up to 2048 x 2048. Analog outputs are RS-343A/RS-170 compatible, driving doubly terminated 50 Ω or 75 Ω loads directly. It utilizes a standard 8-bit MPU interface for register control and is housed in a 304-pin PQFP package.

Digital To Analog Converters Feature Summary

Triple 8-bit D/A converters with 360 MHz operation and 2% typical DAC-to-DAC matching
192-bit pixel port with 8:1 multiplexing for 2048 x 2048 x 24 resolution support
Onboard PLL clock generator eliminating the need for high-speed external crystals
Standard 8-bit MPU I/O interface for real-time command register updates

Digital To Analog Converters Applications

Ultrahigh resolution color graphics systems
Image processing equipment
Driving 24-bit color 2K x 2K monitors

Digital To Analog Converters Procurement Notes

Verify the specific suffix KS against the manufacturer's ordering guide to confirm the commercial temperature range (0°C to +70°C) and S-304 package option. Confirm that the component is sourced from authorized distributors, as specialized nature may require direct contact with sales offices for availability.

Digital To Analog Converters Selection Notes

Select this component when designing systems requiring native 24-bit true-color generation at resolutions up to 2048 x 2048. Ensure the design accommodates the 304-pin PQFP footprint and provides adequate thermal management, as junction temperatures must remain below 100°C under specified dynamic patterns. Verify power supply decoupling requirements for the multiple VAA pins.

Digital To Analog Converters Part Context

The ADV7129 is part of Analog Devices' ADV series of video data converters. It represents a high level of integration by combining triple DACs, a programmable pixel port, and clock generation on a single chip. This architecture simplifies the design of professional video and graphics subsystems compared to discrete solutions.
