Product Detailed Parameters
- Description：CMC 100MA 2LN SMD AEC-Q200
- Series：-
- Mfr：Pulse Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Signal Line
- Number of Lines：2
- Current Rating (Max)：100mA
- DC Resistance (DCR) (Max)：3.5mOhm
- Voltage Rating - DC：60V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：AEC-Q200
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.126" L x 0.098" W (3.20mm x 2.50mm)
- Height (Max)：0.096" (2.45mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：-
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

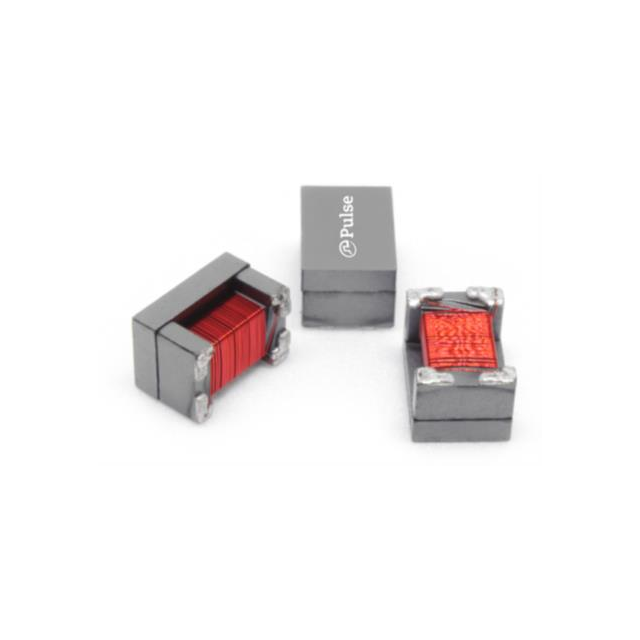

The AE0100 is a common mode choke manufactured by Pulse Electronics, designed for automotive applications. It operates within a voltage range of up to 60V and supports a maximum DC current of 100mA. The component features a low DC resistance (DCR) of 3.5mOhms and an inductance of 200µH. It is housed in a 1210 surface-mount package with dimensions of 3.2mm x 2.5mm x 2.3mm. The device meets AEC-Q200 qualification standards and functions reliably across a temperature range of -40°C to +125°C.
Feature Summary
- AEC-Q200 qualified for automotive reliability
- Low DC resistance for minimal signal loss
- Compact 1210 surface-mount footprint
Applications
- Automotive Ethernet circuits
- 100Base-T1 network interfaces
- Common mode noise suppression in vehicle electronics
Procurement Notes
Verify the specific datasheet version and any Product Change Notifications (PCN) prior to final design approval. Confirm that the 1210 package dimensions and pin configuration match your PCB layout requirements. Ensure the supplier provides documentation confirming AEC-Q200 compliance for automotive qualification purposes.
Selection Notes
Select this component when designing for 100Base-T1 automotive Ethernet applications requiring compact filtering. The 100mA current rating suits low-power signal lines. The wide operating temperature range ensures functionality in harsh automotive environments. Consider the unshielded nature when planning board-level EMC strategies.
Part Context
This part belongs to the 100Base-T1 series from Pulse Electronics, specifically engineered for automotive networking. It serves as a critical passive component for maintaining signal integrity in vehicle communication systems. The product line focuses on meeting strict automotive industry standards for durability and performance.
Replacement Considerations
Consult official manufacturer substitution lists for verified alternatives. Cross-referencing requires matching inductance, current rating, and package dimensions. Verify AEC-Q200 status if used in safety-critical automotive modules.
