Product Detailed Parameters
- Description：RF FILTER BAND PASS 10GHZ MODULE
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：10GHz Center
- Bandwidth：4GHz
- Filter Type：Band Pass
- Ripple：-
- Insertion Loss：1dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：1.811" L x 0.709" W (46.00mm x 18.00mm)
- Height (Max)：0.531" (13.50mm)
Download product information
Overview

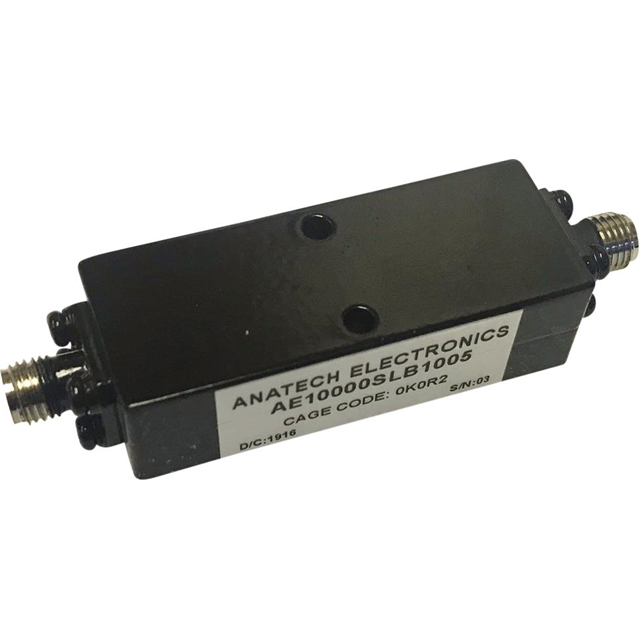

The AE10000SLB1005 is a strip-line band pass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 10,000 MHz (10 GHz) and provides a bandwidth of 4 GHz. The component features SMA connectors for interface connectivity and is housed in a module package. This device is designed for radio frequency applications requiring specific band-pass filtering characteristics at microwave frequencies.
Feature Summary
- Strip-line construction for stable RF performance
- Band pass filtering capability centered at 10 GHz
- Integrated SMA connector interfaces
Applications
- Radio frequency signal processing
- Microwave communication systems
- RF test and measurement equipment
Procurement Notes
Verify the exact part number AE10000SLB1005 against manufacturer documentation to ensure compatibility with your system requirements. Confirm that the SMA connector type and module form factor match your design specifications. Check for any specific handling or installation guidelines provided by Anatech Electronics Inc. prior to integration.
Selection Notes
Select this component when a fixed 10 GHz center frequency with 4 GHz bandwidth is required. Ensure the SMA interface aligns with existing circuit board layouts. Consider the strip-line technology for its suitability in microwave band-pass applications within the specified frequency range.
Part Context
Anatech Electronics Inc. specializes in RF and microwave filters, including band-pass, low-pass, and high-pass designs. The AE10000SLB1005 belongs to their standard filter lineup, utilizing strip-line technology for reliable performance in commercial and military applications. The company focuses on both standard and custom filter solutions.
FAQ
What is the center frequency of the AE10000SLB1005?
The center frequency is 10,000 MHz (10 GHz).
What type of connectors does this filter use?
It uses SMA connectors.
