AE10000SSH6566

Overview

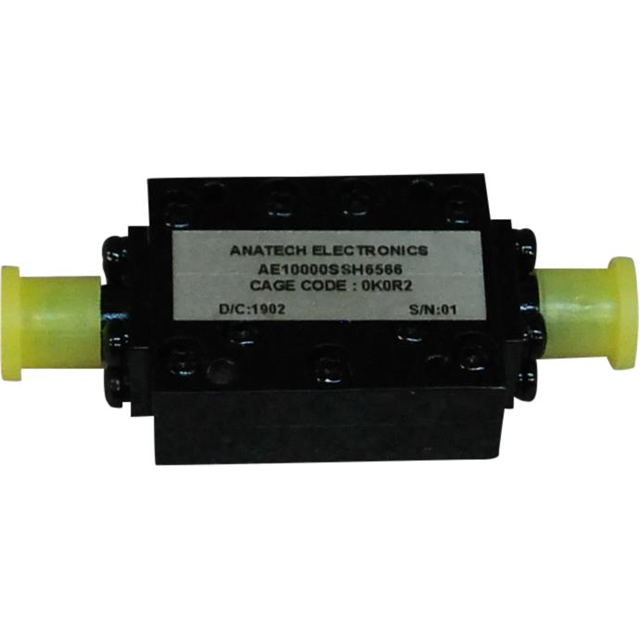

The AE10000SSH6566 is a high-pass RF filter module manufactured by Anatech Electronics Inc. It features a cutoff frequency of 10 GHz and operates within a bandwidth extending to 24 GHz. The component exhibits an insertion loss of 2 dB in the passband. It utilizes SMA connectors for interface connectivity and is supplied in box packaging.

Feature Summary

• High-pass filtering capability with defined cutoff characteristics
• SMA connector interface for standard integration
• Module form factor for system assembly

Applications

• RF signal processing systems requiring frequency separation
• Microwave communication equipment
• Test and measurement instrumentation

Procurement Notes

Verify the specific datasheet version for precise electrical tolerances and mechanical dimensions before finalizing procurement decisions. Confirm that the SMA connector type matches the system requirements. Ensure environmental operating conditions align with the manufacturer's specifications for reliable performance in the intended application environment.

Selection Notes

Select this component when a high-pass response starting at 10 GHz is required. Consider the 2 dB insertion loss impact on system gain budget. Verify compatibility with existing SMA interfaces. Evaluate if the 24 GHz upper limit meets the operational bandwidth needs of the design.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of RF and microwave filters. This product belongs to their suspended stripline filter series, which are engineered for high performance in demanding radio frequency applications. The company focuses on custom and standard filter solutions for various industries.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Custom design or spec matching services may be required from the manufacturer if direct replacement is not feasible.
