AE1000B11605

Overview

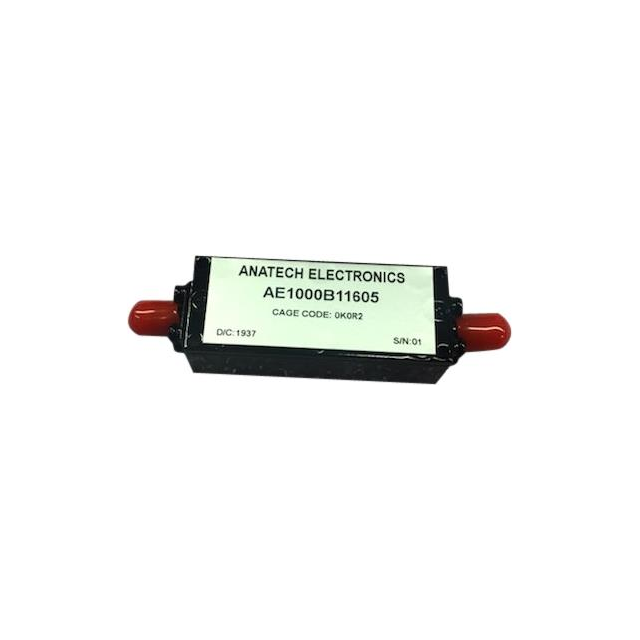

The AE1000B11605 is a band pass RF filter manufactured by Anatech Electronics Inc. It features a center frequency of 1GHz and a bandwidth of 1.5GHz. The component has an insertion loss of 2dB and utilizes SMA connectors within a module package.

Feature Summary

• Band pass filtering capability centered at 1GHz
• Integrated SMA connector interface for signal transmission
• Module form factor design

Applications

• Radio frequency signal processing
• Microwave communication systems
• RF test and measurement equipment

Procurement Notes

Verify the specific datasheet version to confirm exact electrical tolerances and mechanical dimensions before integration. Ensure SMA connector compatibility with existing system interfaces. Confirm that the 1.5GHz bandwidth meets the application requirements. Check for any specific handling instructions regarding the module packaging.

Selection Notes

Select this component when a fixed 1GHz center frequency band pass filter is required. The 1.5GHz bandwidth defines the operational range. Consider the SMA connector type for interface matching. Evaluate the 2dB insertion loss against system power budget constraints. Verify module size fits the enclosure.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters. This part belongs to their standard line of LC band pass filters. The company focuses on military and commercial applications. The product line includes various filter types such as low pass, high pass, and notch filters.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Custom designs may be requested if exact specifications cannot be met by standard inventory.
