AE1000H9910

Overview

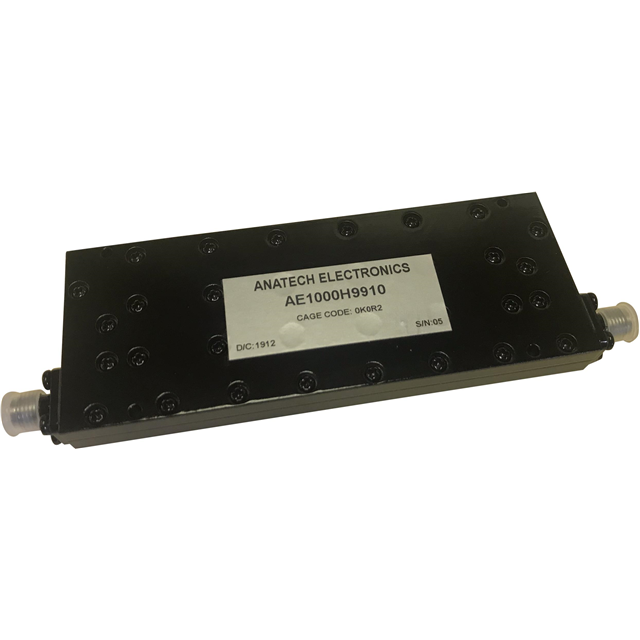

The AE1000H9910 is a suspended high-pass RF filter manufactured by Anatech Electronics Inc. It features a cutoff frequency of 1 GHz and operates within a bandwidth extending to 5 GHz. The component provides an insertion loss of 2 dB in the passband. It utilizes SMA connectors for interface connectivity and is housed in a module package designed for base mounting. This unit is classified under RF filters and is suitable for applications requiring signal filtering above the specified cutoff threshold.

Feature Summary

• Suspended high-pass filter architecture
• SMA connector interface
• Module form factor

Applications

• RF signal processing systems
• Microwave communication equipment
• Test and measurement instrumentation

Procurement Notes

Verify that the required cutoff frequency aligns with system specifications, as this unit is a fixed 1 GHz high-pass filter. Confirm mechanical compatibility with existing mounting structures due to its module form factor. Ensure SMA connector types match the interconnect requirements of the host system. Review datasheet parameters for insertion loss tolerance to guarantee performance integrity within the specific application environment.

Selection Notes

Select this component when a fixed 1 GHz high-pass response is required without tunable adjustments. Consider the 2 dB insertion loss impact on overall system gain budget. Evaluate the module packaging against available space constraints in the assembly. Verify that the SMA interface meets the impedance and mating cycle requirements of the design. Compare against other Anatech models if different cutoff frequencies or bandwidths are needed.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of standard and custom RF and microwave filters. The company produces components for military and commercial sectors, including high-pass, low-pass, band-pass, and notch filters. The AE1000H9910 represents their capability in suspended line filter technologies, offering reliable performance for specialized frequency filtering tasks in demanding electronic environments.

Replacement Considerations

No public confirmed substitute part numbers are identified for the AE1000H9910. Custom designs may be requested from the manufacturer if exact specifications cannot be met by existing stock items. Direct replacement requires matching the 1 GHz cutoff, SMA interface, and module mounting style.
