AE1000L8871

Overview

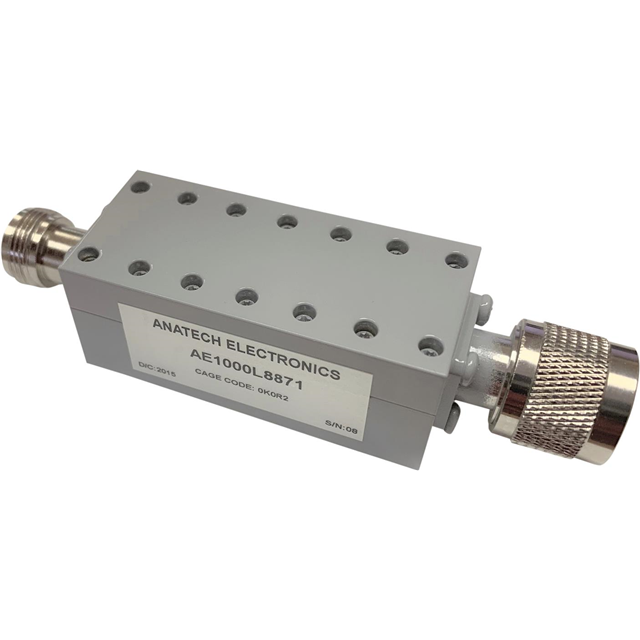

The AE1000L8871 is a low-pass RF filter manufactured by Anatech Electronics Inc., designed for radio frequency applications. It features a passband from 0 to 1 GHz with a maximum insertion loss of 1.0 dB and a minimum return loss of 15 dB within the passband. The component provides a rejection of at least 50 dB in the frequency range of 1.8 to 10 GHz, ensuring effective signal filtering for high-frequency systems.

Feature Summary

• Provides low-pass filtering capability for radio frequency signals
• Maintains low insertion loss within the designated passband
• Offers high rejection levels for frequencies above the cutoff point

Applications

• Radio frequency signal processing
• Microwave system filtering
• Military communication equipment
• Commercial RF testing setups

Procurement Notes

Verify the specific datasheet version when ordering, as manufacturer specifications may be updated. Confirm connector types and mounting requirements against your system interface before purchase. Ensure that the 1 GHz cutoff frequency aligns with your application's bandwidth needs. Check for RoHS compliance status if required by your procurement policy. Validate that the 50 dB rejection specification meets your interference mitigation requirements.

Selection Notes

Select this component when a sharp cutoff near 1 GHz is required with minimal signal degradation in the passband. Consider the 15 dB return loss limit for impedance matching purposes. Evaluate the 50 dB rejection at 1.8-10 GHz against potential harmonic or noise sources in your design. Ensure the physical package fits your available space constraints.

Part Context

Anatech Electronics Inc. specializes in standard and custom RF filters for military and commercial sectors. The AE1000L8871 belongs to their line of connectorized microwave filters. This model represents a fixed-frequency solution rather than a tunable variant. It is part of a broader portfolio of RF components designed for high-reliability environments.

Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Cross-reference electrical parameters such as cutoff frequency, insertion loss, and rejection bandwidth when evaluating alternatives. Verify mechanical compatibility and connector interfaces before considering any generic replacements.
