AE100B9466

Overview

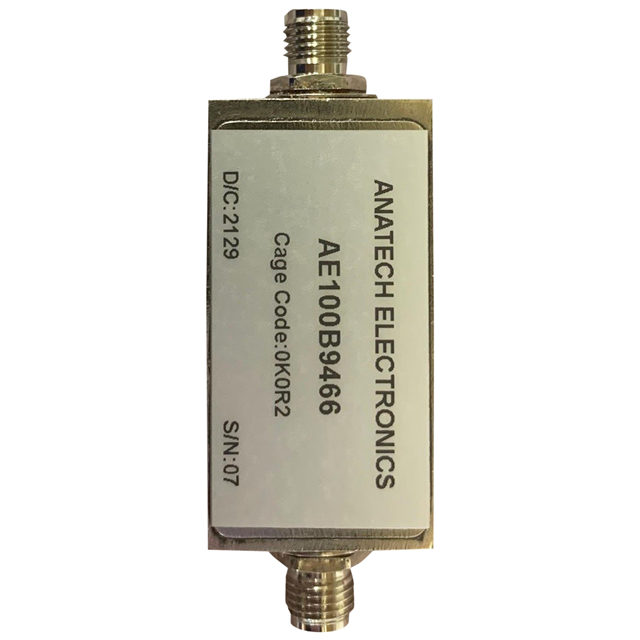

The AE100B9466 is a bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 100 MHz and provides a bandwidth of 5 MHz. The component features an insertion loss of 6 dB and utilizes SMA connectors for interface connections. This LC bandpass filter is designed for radio frequency applications requiring specific frequency selection within the defined passband.

Feature Summary

• LC bandpass filter design
• SMA connector interfaces
• Radio frequency signal processing

Applications

• Radio frequency filtering
• Signal processing modules

Procurement Notes

Verify the exact part number AE100B9466 against official Anatech Electronics Inc. documentation to confirm specifications. Ensure compatibility with required SMA connectors and 100 MHz center frequency requirements. Check for any specific environmental or mounting constraints before procurement.

Selection Notes

Select this component when a 100 MHz center frequency with 5 MHz bandwidth is required. Consider the 6 dB insertion loss impact on system performance. Verify that SMA connectors meet the system interface needs. Compare against other Anatech filters if different frequencies or losses are acceptable.

Part Context

Anatech Electronics Inc. manufactures standard and custom RF and microwave filters for military and commercial use. The AE series includes various bandpass filters with different center frequencies and bandwidths, such as the AE4000B6454 and AE1200B11286, catering to diverse RF application requirements.

Replacement Considerations

No public confirmed substitute part numbers are available for the AE100B9466. Consult Anatech Electronics Inc. directly for potential alternatives or custom solutions if this specific model is unavailable.
