AE100H9835

Overview

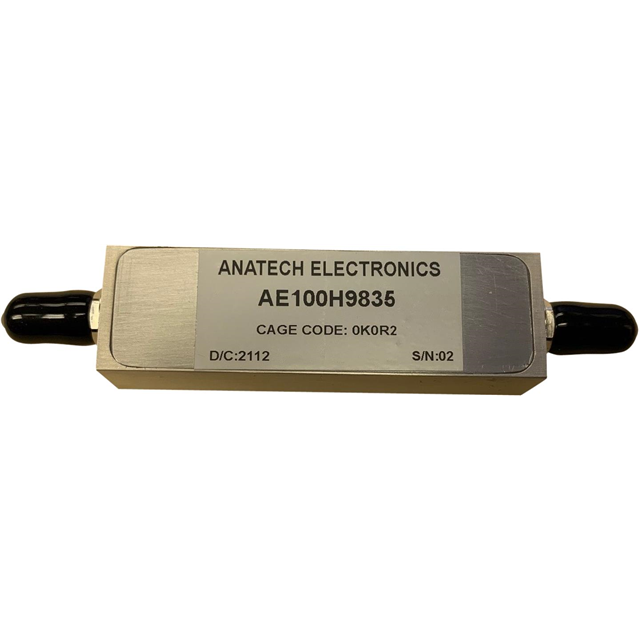

The AE100H9835 is a high-pass RF filter manufactured by Anatech Electronics Inc. It features a cutoff frequency of 100 MHz and operates within a bandwidth extending to 1000 MHz. The component exhibits an insertion loss of 3 dB at the specified operating range. It is housed in a module package equipped with SMA connectors for interface connectivity. The unit is designed for base mounting applications, ensuring stable integration into radio frequency systems requiring signal filtering above the 100 MHz threshold.

Feature Summary

• High-pass filtering capability with a defined 100 MHz cutoff frequency
• Module construction utilizing SMA connectors for standardized interfacing
• Designed for base mounting to ensure mechanical stability in RF assemblies

Applications

• Radio frequency signal processing systems
• Microwave communication equipment
• RF test and measurement instrumentation

Procurement Notes

Verify the specific datasheet version provided by Anatech Electronics Inc. to confirm current manufacturing status and compliance with ISO 9001:2015 standards. Ensure that the SMA connector orientation and module dimensions match the intended chassis design. Cross-reference the insertion loss specifications against system requirements to guarantee signal integrity within the 100-1000 MHz operational band before finalizing procurement orders.

Selection Notes

Select this component when a high-pass response starting at 100 MHz is required for RF applications. Consider the 3 dB insertion loss specification as a critical parameter for signal attenuation analysis. The module form factor with SMA connectors dictates the physical integration method. Evaluate the 1000 MHz upper bandwidth limit to ensure compatibility with the highest frequency signals present in the target application environment.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of RF and microwave filters. Founded in 1990, the company maintains ISO 9001:2015 certification. The AE100H9835 belongs to their portfolio of high-pass filters, which are engineered for precise frequency discrimination in demanding electronic environments. This product line supports various industrial and commercial radio frequency infrastructure needs.

Replacement Considerations

Publicly confirmed substitute part numbers for the AE100H9835 are not available in the provided documentation. Verify compatibility with alternative high-pass filters from other manufacturers based on cutoff frequency, bandwidth, and connector type specifications.
