AE10500SSH6605

Overview

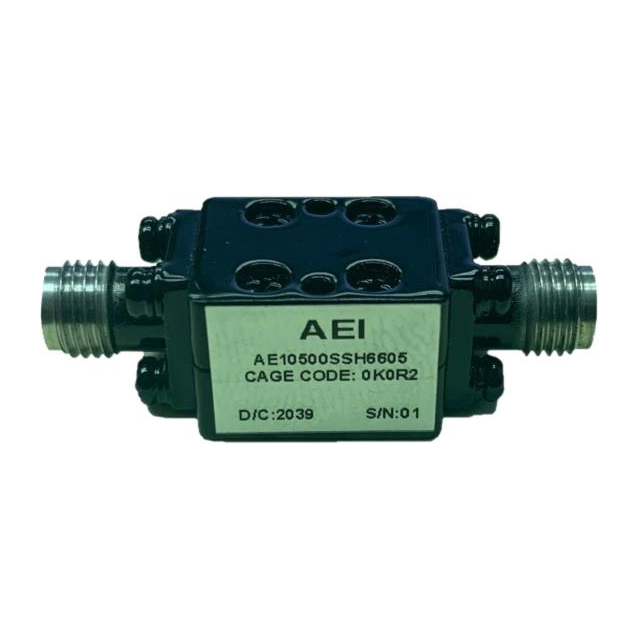

The AE10500SSH6605 is a suspended stripline high-pass RF filter manufactured by Anatech Electronics Inc. It features a cutoff frequency of 10.5 GHz and operates within a bandwidth extending to 28 GHz. The component provides an insertion loss ranging from 1 to 2 dB in the passband. It supports a power handling capacity of 15 W and achieves a rejection level of 50 dB. The filter utilizes SMA connectors for interface compatibility.

Feature Summary

• Suspended stripline construction for stable RF performance
• High-pass filtering characteristic with defined cutoff at 10.5 GHz
• Capable of handling 15 W power levels
• Provides significant signal rejection above 50 dB

Applications

• RF signal conditioning in microwave systems
• Harmonic suppression in communication transceivers
• Interference filtering in test and measurement equipment

Procurement Notes

Verify the specific datasheet version for precise electrical tolerances and mechanical dimensions before integration. Confirm connector type and mating requirements with system interfaces. Ensure environmental ratings match operational conditions. Check for RoHS compliance status if required by regulatory standards. Validate power handling capabilities against peak signal loads.

Selection Notes

Select this component when a high-pass response starting at 10.5 GHz is required. Consider the suspended stripline design for improved thermal and electrical stability compared to standard microstrip filters. Evaluate the 15 W power rating against maximum expected input signals. Assess the SMA connector compatibility with existing cabling infrastructure. Compare insertion loss specifications against system noise budget requirements.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of RF and microwave filters. The company produces various filter types including high-pass, low-pass, band-pass, and notch filters. This part belongs to their suspended stripline series, which offers robust performance in demanding RF environments. The manufacturer focuses on custom and standard filter solutions for industrial and commercial applications.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Cross-referencing requires matching cutoff frequency, power handling, and connector type. Consult manufacturer engineering for potential spec matches or custom alternatives.
