Product Detailed Parameters

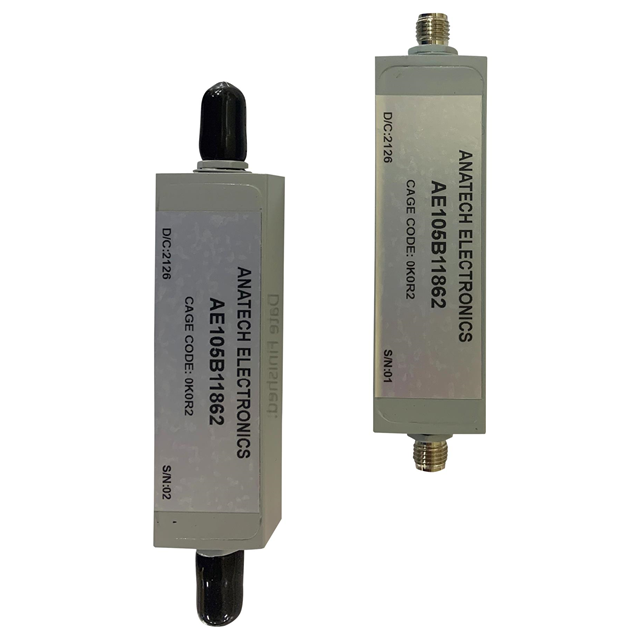

- Description：RF FILTER BANDPASS 105MHZ MODULE
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：105MHz Center
- Bandwidth：140MHz
- Filter Type：Band Pass
- Ripple：0.5dB
- Insertion Loss：1dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：2.500" L x 0.750" W (63.50mm x 19.05mm)
- Height (Max)：0.500" (12.70mm)
Download product information
Overview
The AE105B11862 is a band pass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 105MHz and provides a bandwidth of 140MHz. The module features SMA connectors for interfacing. This component is designed for radio frequency applications requiring specific frequency selection within the VHF range.
Feature Summary
- Band pass filtering capability centered at 105MHz
- Integrated SMA connector interface
- Module form factor design
Applications
- Radio frequency signal processing
- VHF communication systems
- Test and measurement equipment
Procurement Notes
Verify the exact center frequency of 105MHz and 140MHz bandwidth against system requirements before procurement. Confirm SMA connector compatibility with existing infrastructure. Request official datasheets from Anatech Electronics Inc. to validate performance specifications and ensure the component meets necessary regulatory standards for the intended deployment environment.
Selection Notes
Select this model when a fixed 105MHz center frequency with 140MHz bandwidth is required. Ensure the SMA interface matches the circuit board or cable assembly. Consider the module form factor for integration constraints. Verify that the insertion loss and rejection characteristics meet the specific application needs, as detailed in the manufacturer's documentation.
Part Context
Anatech Electronics Inc. specializes in RF and microwave filters. The company offers standard and custom designs for military and commercial sectors. The AE105B11862 belongs to their line of band pass filters, utilizing suspended stripline technology common in their product portfolio for stable RF performance.
FAQ
What type of connectors does the AE105B11862 use?
The AE105B11862 uses SMA connectors.
Is the AE105B11862 a low pass or band pass filter?
It is a band pass RF filter.
