AE1062B11858

Overview

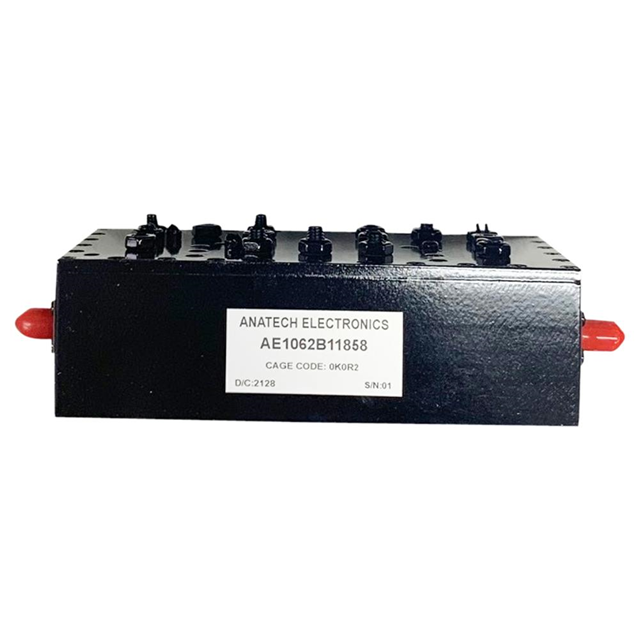

The AE1062B11858 is a cavity band pass filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 1062.5 MHz and provides a bandwidth of 125 MHz. The component features a maximum insertion loss of 1.0 dB within the specified passband range of 1000 to 1125 MHz. This RF filter utilizes SMA connectors for interface connectivity.

Feature Summary

• Cavity construction for stable RF performance
• Band pass filtering capability centered at 1062.5 MHz
• SMA connector interface for standard integration

Applications

• Radio frequency signal processing systems
• Microwave communication equipment
• Test and measurement instrumentation

Procurement Notes

Verify the specific datasheet version and manufacturing date code upon order confirmation. Ensure that the SMA connector orientation and mounting requirements align with the target system design. Confirm that the 1062.5 MHz center frequency specification meets the exact operational needs of the application before finalizing procurement.

Selection Notes

Select this component when a precise 1062.5 MHz center frequency with a 125 MHz bandwidth is required. The 1.0 dB maximum insertion loss makes it suitable for applications demanding low signal attenuation. Consider the physical dimensions and SMA interface compatibility during the initial design phase to ensure seamless integration into the RF chain.

Part Context

This part belongs to the Anatech Electronics cavity band pass filter series, which covers frequencies from 0.1 to 47 GHz. These filters are designed for high-performance RF and microwave applications requiring sharp cutoff characteristics and stable operation across defined frequency bands.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing designs if considering alternative components.
