AE10B11179

Overview

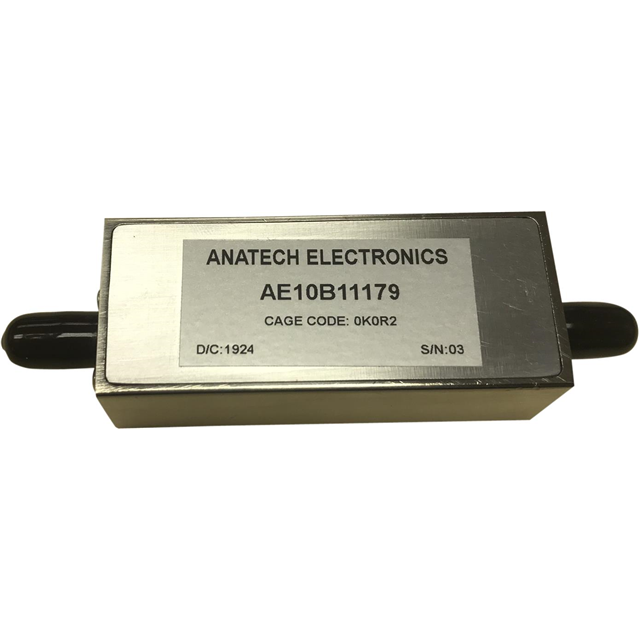

The AE10B11179 is a band pass RF filter module manufactured by Anatech Electronics Inc. It features a center frequency of 10 MHz and a bandwidth of 10 MHz, covering the range from 5 to 15 MHz. The component exhibits an insertion loss of less than 2.0 dB within the passband. It is housed in a box-style enclosure and utilizes SMA connectors for interface connections.

Feature Summary

• LC-based band pass filtering architecture
• SMA connector interface
• Box-style module housing

Applications

• RF signal processing
• Radio frequency systems
• Filtering applications requiring 10 MHz center frequency

Procurement Notes

Verify the specific datasheet version and manufacturer documentation to confirm technical specifications. Ensure compatibility with system requirements regarding connector type and frequency range. Cross-reference part numbers with official Anatech Electronics Inc. records to validate authenticity and performance data before procurement.

Selection Notes

Select this component when a fixed 10 MHz center frequency band pass filter is required. Consider the SMA connector interface and box packaging form factor for integration. Evaluate the insertion loss specification against system sensitivity requirements. Confirm that the 5-15 MHz bandwidth aligns with the intended signal processing needs.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of RF and microwave filters. The company offers various filter types including band pass, low pass, and high pass configurations. This module belongs to their LC band pass filter series, designed for specific frequency applications.

Replacement Considerations

Consult official Anatech Electronics Inc. documentation or authorized distributors for verified substitute part numbers. Do not assume generic replacements are compatible without verifying electrical parameters and physical dimensions.
