AE11000L9168

Overview

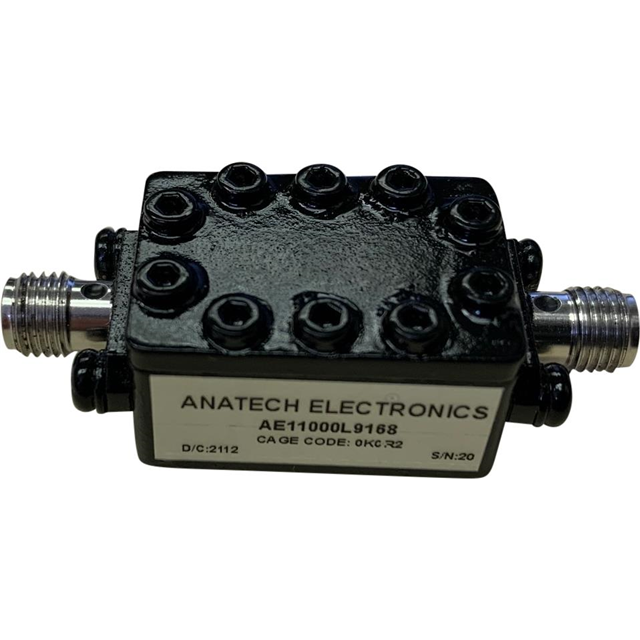

The AE11000L9168 is a low-pass RF filter manufactured by Anatech Electronics Inc. It features an 11 GHz cutoff frequency and SMA connectors. The component operates as a module with a specified bandwidth of 1 dB.

Feature Summary

• Low-pass filtering capability for radio frequency signals
• SMA connector interface for integration
• Module form factor design

Applications

• Radio frequency signal processing
• Microwave system integration
• RF test and measurement equipment

Procurement Notes

Verify the specific datasheet for the AE11000L9168 to confirm detailed electrical performance characteristics, including insertion loss and return loss specifications. Ensure compatibility with existing SMA interfaces in your RF circuit design before procurement.

Selection Notes

Select this component when an 11 GHz low-pass response is required with SMA connectivity. Consider the module form factor for ease of integration into standard RF assemblies requiring precise cutoff frequencies at microwave bands.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters. This part belongs to their low-pass filter series, designed for applications requiring signal attenuation above specific frequency thresholds while maintaining passband integrity.

Replacement Considerations

Consult official Anatech documentation or authorized distributors for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' components without verifying electrical parameters and mechanical dimensions.
