Product Detailed Parameters
- Description：RF FILTER HIGH PASS 11.5GHZ MOD
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：11.5GHz (Cutoff)
- Bandwidth：28.5GHz
- Filter Type：High Pass
- Ripple：-
- Insertion Loss：2dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：0.591" L x 0.500" W (15.00mm x 12.70mm)
- Height (Max)：0.394" (10.00mm)
Download product information
Overview

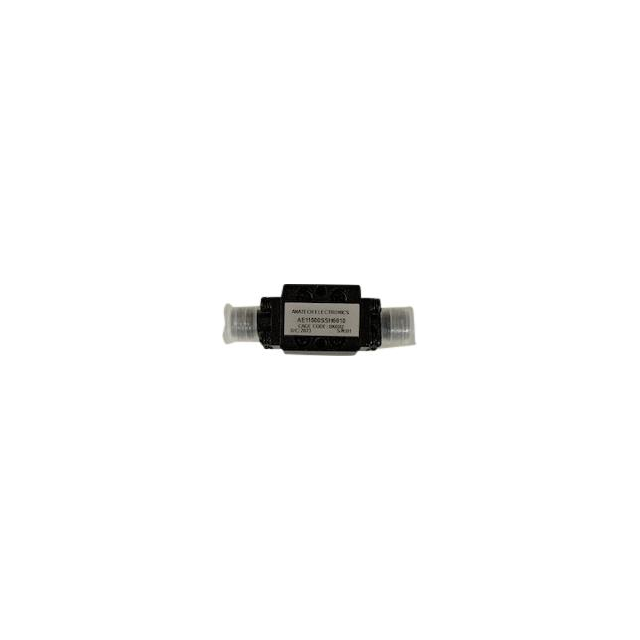

The AE11500SSH6610 is a suspended stripline high-pass RF filter manufactured by Anatech Electronics Inc. It features a cutoff frequency of 11.5 GHz and operates within a bandwidth extending to 28.5 GHz. The component utilizes SMA connectors for interface compatibility. Key electrical specifications include an insertion loss ranging from 1 to 2 dB and a rejection level of 50 dB. The device supports a power handling capacity of 15 W, ensuring reliable performance in demanding radio frequency applications.
Feature Summary
- Suspended stripline construction for stable RF performance
- High-pass filtering capability with defined cutoff characteristics
- Integrated SMA connectors for standard interfacing
Applications
- Military communication systems
- Commercial communication infrastructure
- Radio frequency signal processing
Procurement Notes
Verify the specific connector type and power rating requirements against your system design before ordering. Confirm that the 15 W power handling and 50 dB rejection meet your application's operational limits. Ensure SMA interface compatibility with existing cabling. Check for any specific environmental or mounting constraints relevant to the suspended stripline module format.
Selection Notes
Select this component when a high-pass response above 11.5 GHz is required with moderate insertion loss. The 15 W power rating suits applications needing significant power handling. Verify that the SMA interface matches your system architecture. Consider the suspended stripline technology for stability in microwave environments compared to other filter types.
Part Context
Anatech Electronics Inc. specializes in designing and manufacturing RF and microwave filters for military and commercial sectors. Founded in 1990, the company holds ISO 9001:2015 certification. Their product portfolio includes various filter types operating from 100 kHz up to 20 GHz and beyond, serving diverse communication and signal processing needs.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult Anatech Electronics directly for potential equivalents or updated models that match the 11.5 GHz cutoff and SMA interface specifications.
