AE12000L9225

Overview

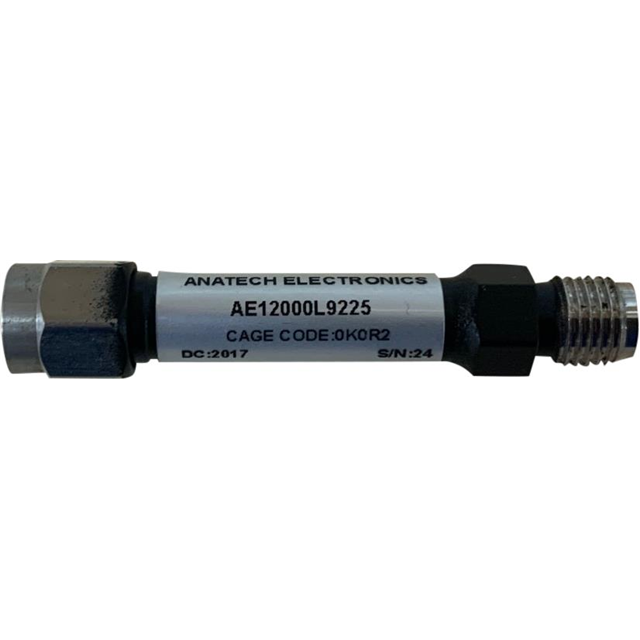

The AE12000L9225 is a low-pass RF filter manufactured by Anatech Electronics Inc. It features a cutoff frequency of 12 GHz and utilizes an SMA connector interface. The component is designed for in-line module applications with an insertion loss ranging from 0.4 dB to 1.2 dB. This device operates within the DC to 12 GHz frequency range, providing signal filtering capabilities for radio frequency systems.

Feature Summary

• Low-pass filter design for RF signal conditioning
• SMA connector interface for in-line integration
• Operates up to 12 GHz cutoff frequency

Applications

• Wireless communication systems
• Defense electronic systems
• RF and microwave test equipment

Procurement Notes

Verify the specific datasheet version for precise electrical tolerances and mechanical dimensions before integration. Confirm that the SMA connector type matches the system requirements. Ensure environmental ratings align with the intended operating conditions. Cross-reference part numbers to avoid confusion with similar series components.

Selection Notes

Select this component when a low-pass filter with a 12 GHz cutoff is required. Consider the insertion loss specifications for signal integrity needs. Evaluate the SMA interface compatibility with existing circuitry. Assess the physical form factor for space constraints in the assembly.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters. The company focuses on designing and manufacturing products for various electronic applications. Their portfolio includes filters used in defense and wireless communications. This part belongs to their line of low-pass RF filters.

Replacement Considerations

Consult manufacturer documentation for direct substitutes. Verify equivalent cutoff frequencies and connector types. Check for compatible insertion loss characteristics. Ensure mechanical fit and interface standards match the original design.
