AE120N2267

Overview

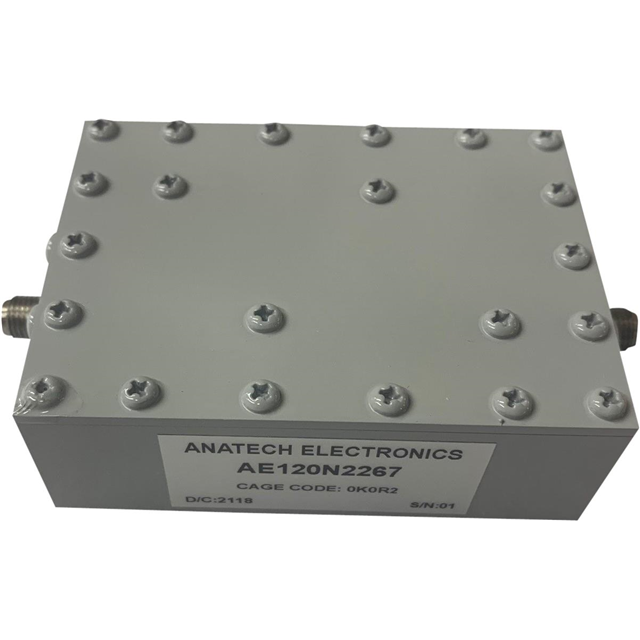

The AE120N2267 is a band stop RF filter module manufactured by Anatech Electronics Inc. It features a center frequency of 120MHz and a bandwidth of 10MHz. Designed for radio frequency applications, this component serves as a notch filter to reject specific signal frequencies within its operational range.

Feature Summary

• Provides band stop filtering capability for radio frequency signals
• Engineered as a dedicated module for precise frequency rejection

Applications

• Radio frequency interference suppression
• Signal processing systems requiring specific frequency notch filtering

Procurement Notes

Verify the exact part number AE120N2267 against official Anatech Electronics Inc. documentation before procurement. Confirm that the 120MHz center frequency and 10MHz bandwidth specifications align with your system requirements. Ensure compatibility with your existing RF infrastructure and mounting constraints. Cross-reference datasheets to validate performance characteristics under your operating conditions.

Selection Notes

Select this component when a fixed 120MHz band stop response is required. Consider the 10MHz bandwidth specification relative to adjacent channel requirements. Evaluate module form factor integration needs. Verify that the manufacturer's ISO 9001:2015 certification meets your quality standards. Assess thermal and environmental operating limits against your deployment scenario.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters for military and commercial sectors. The company designs standard and custom components. This model belongs to their line of band stop filters. They are based in Garfield, New Jersey. Their products target high-reliability applications requiring precise frequency control.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Consult Anatech Electronics Inc. directly for potential equivalents or custom design alternatives if sourcing issues arise.
