AE1215L9221

Overview

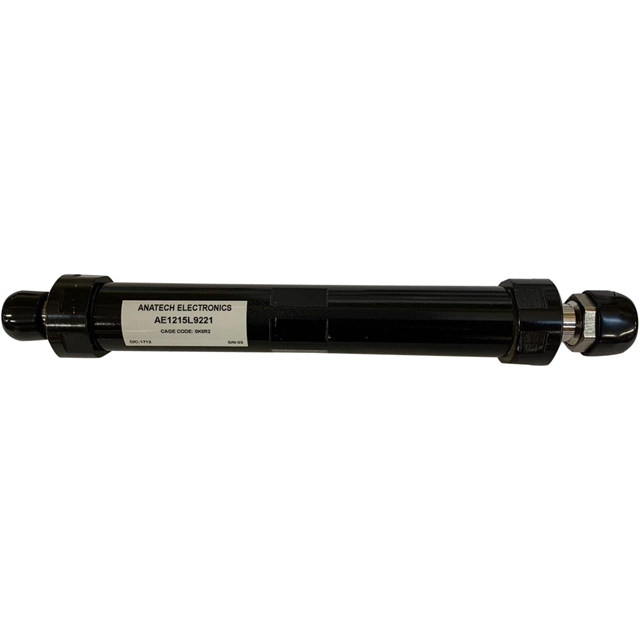

The AE1215L9221 is a high-power tubular low-pass RF filter manufactured by Anatech Electronics Inc. It features a cutoff frequency of 1215 MHz with a passband extending from DC to this limit. The component exhibits a maximum insertion loss of 0.3 dB and a minimum VSWR of 1.18:1. It utilizes an N-Type connector interface for in-line module integration, designed for robust radio frequency signal processing applications requiring precise frequency attenuation.

Feature Summary

• High power handling capability within a tubular construction
• Low insertion loss ensuring minimal signal degradation in the passband
• Stable impedance matching characterized by low VSWR

Applications

• Radio frequency signal filtering
• In-line module integration
• High power RF systems

Procurement Notes

Verify the specific datasheet version for the AE1215L9221 to confirm mechanical dimensions and connector tolerances. Ensure compatibility with N-Type mating interfaces. Cross-reference electrical specifications against system requirements for cutoff frequency and power handling limits before procurement.

Selection Notes

Select this component when a low-pass filter with a 1215 MHz cutoff is required. Consider the tubular form factor for thermal management and power handling. Verify that the N-Type interface matches existing infrastructure. Evaluate insertion loss and VSWR specifications against system sensitivity requirements.

Part Context

This part belongs to Anatech Electronics Inc.'s tubular low-pass filter series. These components are engineered for high-power RF environments. The AE1215L9221 specifically targets applications needing sharp cutoff characteristics near 1.2 GHz. It represents a specialized solution for maintaining signal integrity in demanding radio frequency circuits.

Replacement Considerations

No public confirmed substitute part numbers are available for the AE1215L9221.
