Overview

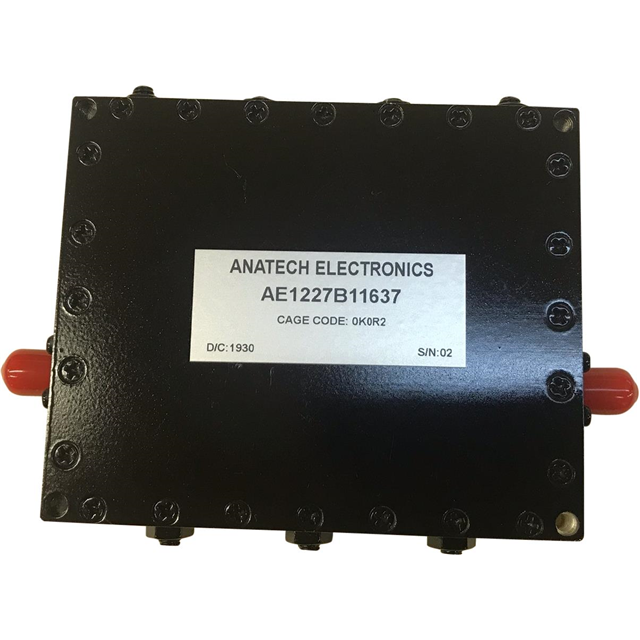

The AE1227B11637 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 1.2275 GHz and provides a bandwidth of 354.5 MHz. The component features a 1 dB insertion loss specification and maintains a system impedance of 50 ohms. It is constructed as a module equipped with SMA connectors for interface connectivity.

Feature Summary

• Cavity construction for stable RF performance
• Bandpass filtering characteristic
• SMA connector interface

Applications

• Radio frequency signal processing
• Military communication systems
• Commercial RF equipment

Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and connector orientation. Ensure the operating environment matches the component's thermal specifications. Confirm that the 50-ohm impedance aligns with the system design requirements before finalizing procurement orders.

Selection Notes

Select this component when a fixed center frequency of 1.2275 GHz is required. The 354.5 MHz bandwidth defines the passband range. Verify compatibility with SMA interfaces and 50-ohm system impedance. Consider cavity technology benefits for stability in demanding environments.

Part Context

Anatech Electronics Inc. manufactures standard and custom radio frequency filters for military and commercial applications. This model belongs to their cavity filter series, designed for robust performance in RF signal conditioning tasks requiring precise frequency selection.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult manufacturer engineering support for equivalent alternatives if direct replacement is necessary.
