AE12500H9911

Overview

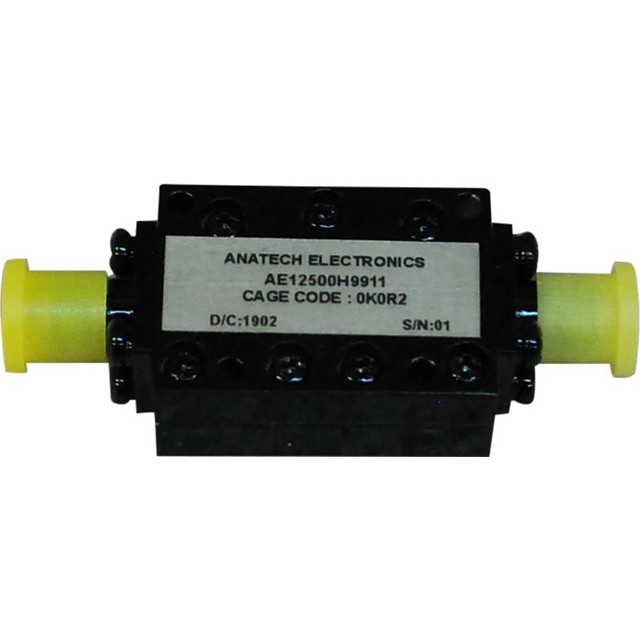

The AE12500H9911 is a high-pass RF filter module manufactured by Anatech Electronics Inc. It operates within the 12500-24500 MHz frequency range, featuring a cutoff frequency of 12.5 GHz. The device utilizes SMA connectors for interface and is packaged in a box format. Electrical specifications include a passband insertion loss of ≤ 2.0 dB at frequencies between 12500-13000 MHz.

Feature Summary

• High-pass filtering capability designed for microwave applications
• Integrated SMA connector interfaces for signal transmission
• Module form factor for system integration

Applications

• Microwave communication systems
• RF test and measurement equipment
• Satellite ground station components

Procurement Notes

Verify the specific datasheet version to confirm exact electrical tolerances and mechanical dimensions before procurement. Ensure compatibility with SMA connector types and mating hardware. Confirm RoHS status and lead-free requirements against current project specifications. Cross-reference part numbers with official manufacturer documentation to avoid counterfeit or obsolete stock issues.

Selection Notes

Select this component when a fixed high-pass response above 12.5 GHz is required. Consider the insertion loss characteristics and physical module size relative to system constraints. Evaluate the SMA interface compatibility with existing cabling and assembly infrastructure. Verify that the operating frequency range aligns with the intended signal bandwidth requirements.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of RF and microwave filters. This company produces various filter types including high-pass, low-pass, band-pass, and notch filters. The AE12500H9911 belongs to their catalog of standardized high-frequency modules designed for reliable performance in demanding RF environments.

Replacement Considerations

Consult official Anatech Electronics documentation for verified substitute part numbers. Do not assume cross-compatibility with generic high-pass filters due to specific impedance and attenuation requirements.
