AE12500SSL1055

Overview

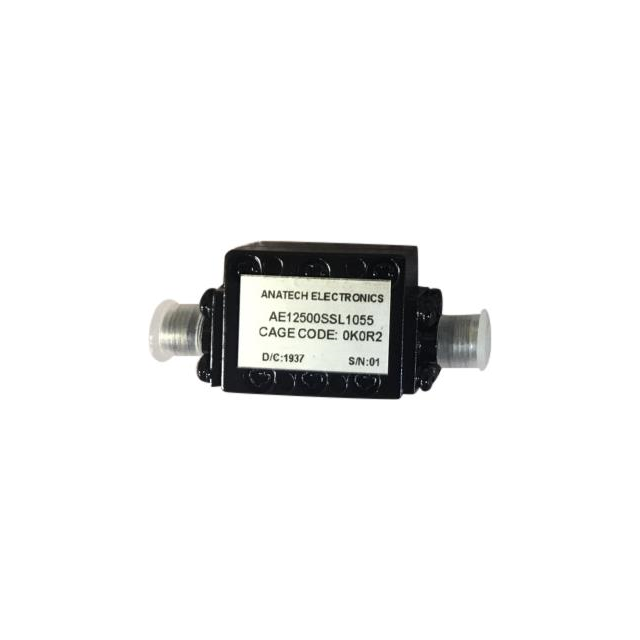

The AE12500SSL1055 is a suspended stripline low-pass RF filter manufactured by Anatech Electronics Inc. It features a cutoff frequency of 12.5 GHz and utilizes SMA connectors for interface connectivity. The component is supplied in a module package configuration, designed for radio frequency applications requiring precise signal filtering within the specified bandwidth.

Feature Summary

• Suspended stripline construction for stable RF performance
• Low-pass filter topology with defined cutoff characteristics
• Integrated SMA connector interfaces for direct system integration

Applications

• Radio frequency signal processing modules
• Microwave test and measurement equipment
• Communication system filtering stages

Procurement Notes

Verify the specific datasheet version (AE12500SSL1055-DG) against your technical requirements before procurement. Confirm that the SMA connector type and module dimensions match your assembly constraints. Ensure compatibility with your system's impedance specifications to maintain signal integrity during operation.

Selection Notes

Select this component when a 12.5 GHz cutoff frequency is required for low-pass filtering applications. The suspended stripline design offers distinct advantages over planar technologies in terms of power handling and loss characteristics. Verify that the module form factor fits within your available chassis or PCB space constraints.

Part Context

Anatech Electronics Inc. specializes in high-performance RF and microwave components. This part belongs to their suspended stripline filter series, which typically includes various cutoff frequencies such as 5.5 GHz, 18 GHz, and others. These filters are engineered for demanding environments where consistent electrical performance is critical.
