AE1250B9971

Overview

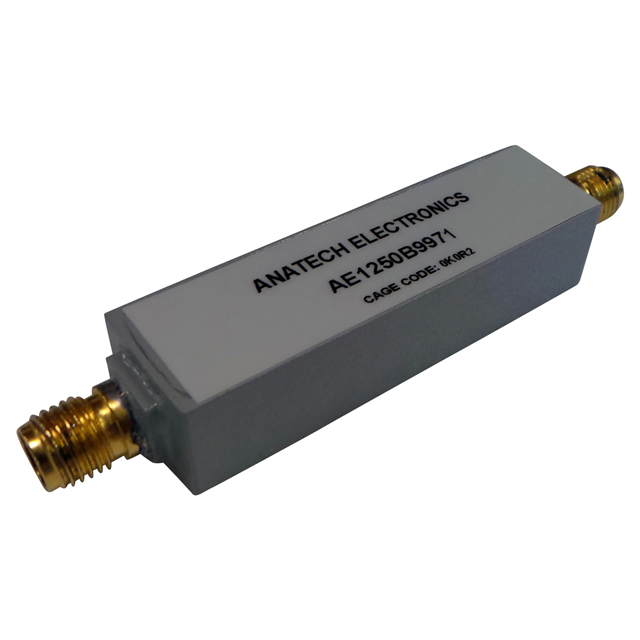

The AE1250B9971 is a bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 1.25GHz and provides a bandwidth of 500MHz. The component features an insertion loss of 2dB and utilizes SMA connectors for interface connections. Designed as a chassis-mount module, it complies with RoHS3 standards and holds an MSL level of 1.

Feature Summary

• Bandpass filtering capability centered at 1.25GHz
• Chassis-mount module construction
• SMA connector interfaces

Applications

• Radio frequency signal processing
• Microwave communication systems
• RF test and measurement equipment

Procurement Notes

Verify the specific datasheet AE1250B9971.pdf for complete electrical specifications and mechanical drawings before integration. Confirm that the SMA connector type and chassis mounting requirements align with your system design constraints. Ensure compliance with RoHS3 regulations is documented for your supply chain records.

Selection Notes

Select this component when a fixed 1.25GHz center frequency with 500MHz bandwidth is required. The 2dB insertion loss specification should be evaluated against system link budget requirements. The chassis-mount form factor necessitates appropriate enclosure space and thermal management considerations within the final assembly design.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of RF and microwave filters. This company produces various filter types including bandpass, low pass, and high pass configurations. The AE1250B9971 represents their modular approach to providing standardized RF filtering solutions for professional applications.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Custom designs may be available through Anatech Engineering if exact specifications cannot be met by existing inventory.
