AE125H9912

Overview

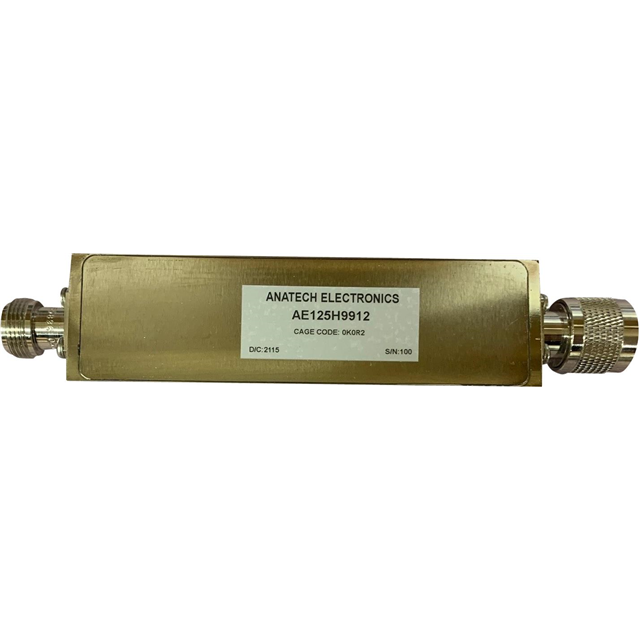

The AE125H9912 is a high-pass RF filter module manufactured by Anatech Electronics Inc. It features a cutoff frequency of 125MHz and a bandwidth of 387MHz with an insertion loss of 1dB. Designed for radio frequency applications, this component serves as a specialized filter for signal processing in microwave systems.

Feature Summary

• High-pass filtering capability for radio frequency signals
• Module form factor for integration into RF systems
• Designed for microwave frequency range operations

Applications

• Radio frequency signal processing
• Microwave system filtering
• Military and commercial RF equipment

Procurement Notes

Verify the specific datasheet for the AE125H9912 to confirm mechanical dimensions and mounting requirements. Ensure compatibility with your system's impedance and frequency range. Contact Anatech Electronics Inc. directly for current availability and technical specifications, as distributor data may vary.

Selection Notes

Select the AE125H9912 when a high-pass filter with a 125MHz cutoff is required. Consider its 387MHz bandwidth and 1dB insertion loss for system performance. Evaluate chassis or panel mounting needs based on the module design. Confirm that the RF frequency range matches your application's operational spectrum.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters for military and commercial use. The company is ISO 9001:2015-certified and focuses on standard and custom filter designs. This part belongs to their line of radio frequency components used in various electronic systems.

Replacement Considerations

No public substitute part numbers are confirmed for the AE125H9912. Consult Anatech Electronics Inc. for potential alternatives or custom solutions if this specific model is unavailable.
