AE127B11872

Overview

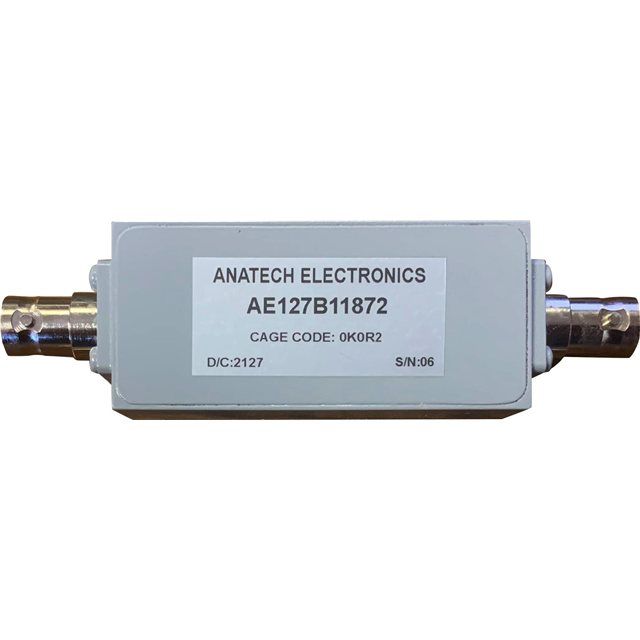

The AE127B11872 is a bandpass RF filter module manufactured by Anatech Electronics Inc. It operates with a center frequency of 127MHz and provides an 18MHz bandwidth, covering a range from 118MHz to 136MHz. The component is designed as a standalone module equipped with BNC connectors for integration into radio frequency systems.

Feature Summary

• Bandpass filtering capability within the specified frequency range
• Integrated BNC connectors for direct system interfacing
• Module form factor for standalone deployment

Applications

• Radio frequency signal processing
• Communication system interference rejection
• Spectrum analysis front-end filtering

Procurement Notes

Verify the specific connector type and mounting requirements against your system interface before ordering. Confirm that the 118-136 MHz operational range aligns precisely with your application's spectral needs. Ensure compatibility with existing BNC infrastructure. Review manufacturer documentation for detailed electrical specifications and environmental ratings prior to procurement.

Selection Notes

Select this model when a fixed center frequency of 127MHz is required. The 18MHz bandwidth suits applications needing moderate selectivity in the VHF band. Consider the module format for ease of integration compared to discrete components. Verify that BNC connectivity meets your cabling standards.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters. This part belongs to their bandpass filter series. The company designs and manufactures these components for various electronic applications. The AE127B11872 represents a standard offering in their catalog for VHF band operations.

Replacement Considerations

Check for exact frequency match (127MHz center, 118-136MHz range). Verify BNC connector compatibility. Compare insertion loss and rejection specs if datasheets are available. No direct substitute part numbers are publicly confirmed.
