Product Detailed Parameters
- Description：RF FILTER BAND PASS 13.12GHZ MOD
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：13.12GHz Center
- Bandwidth：2.02GHz
- Filter Type：Band Pass
- Ripple：1dB
- Insertion Loss：2dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：1.720" L x 0.500" W (43.69mm x 12.70mm)
- Height (Max)：0.390" (9.91mm)
Download product information
Overview

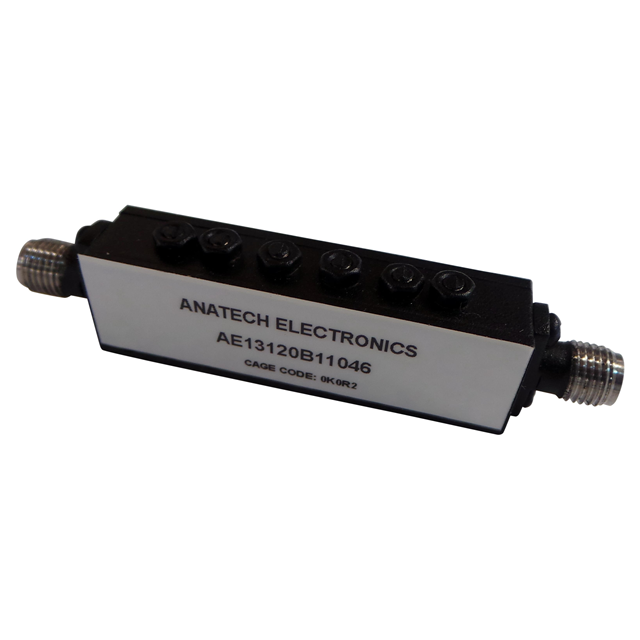

The AE13120B11046 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 13.12 GHz and provides a bandwidth of 2.02 GHz. The component features a maximum height of 0.390 inches (9.91 mm) and incorporates SMA connectors for interface connectivity. Designed as a module, it exhibits a ripple specification of 1 dB, ensuring signal integrity within its designated passband.
Feature Summary
- Cavity construction for stable RF performance
- Bandpass filtering capability at microwave frequencies
- Integrated SMA connector interfaces
Applications
- Microwave communication systems
- Radio frequency signal processing
- Test and measurement equipment
Procurement Notes
Verify the specific part number AE13120B11046 against official Anatech Electronics documentation to confirm technical specifications. Ensure compatibility with system requirements regarding center frequency, bandwidth, and connector type before procurement. Cross-reference datasheets for mechanical dimensions and electrical parameters to prevent integration errors.
Selection Notes
Select this component when a fixed center frequency of 13.12 GHz is required. Consider the 2.02 GHz bandwidth and 1 dB ripple specifications for signal conditioning needs. Evaluate the SMA connector interface and physical dimensions against available board space and mating hardware constraints in the design.
Part Context
This component belongs to the Anatech Electronics RF filter family, specifically designed for cavity-based applications. It serves as a specialized passive device for managing radio frequency signals in high-frequency environments. The product line focuses on providing reliable filtering solutions for telecommunications and industrial applications.
Replacement Considerations
No public substitute part numbers are confirmed for this specific model. Verify compatibility with alternative components by matching center frequency, bandwidth, and connector specifications directly from manufacturer datasheets.
