AE1370B11585

Overview

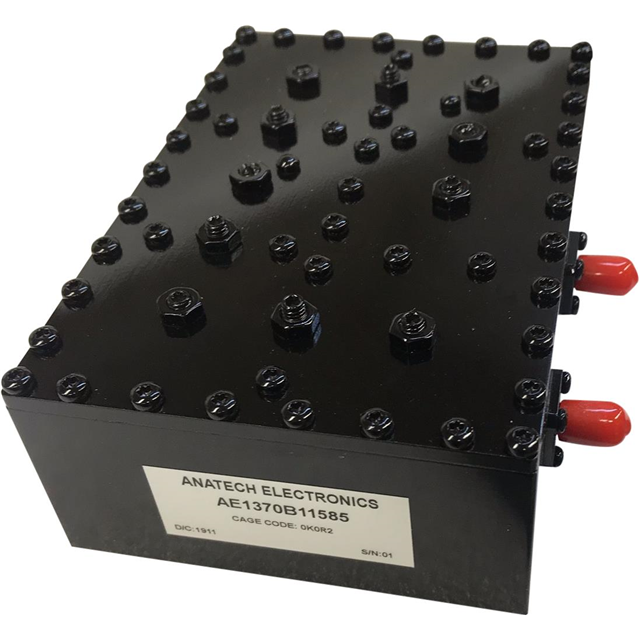

The AE1370B11585 is a cavity bandpass filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 1.37 GHz and provides a bandwidth of 40 MHz, covering the 1350-1390 MHz range. The module features SMA connectors and exhibits an insertion loss of 1.8 dB. Designed for RF applications, it complies with RoHS standards and is lead-free.

Feature Summary

• Cavity construction for stable RF performance
• SMA connector interface
• RoHS compliant and lead-free

Applications

• RF signal filtering
• Microwave communication systems
• Military and commercial radio frequency applications

Procurement Notes

Verify the specific datasheet version to confirm exact electrical tolerances and mechanical dimensions. Ensure compatibility with SMA connector types in your system design. Confirm RoHS compliance status if required for your manufacturing process. Cross-reference part numbers to avoid confusion with similar models like AE1370B11201 which may have different internal technologies.

Selection Notes

Select this component when a 40 MHz bandwidth at 1.37 GHz is required. Consider the 1.8 dB insertion loss impact on system gain. Verify that SMA connectors match existing infrastructure. Compare against LC filter alternatives if size constraints differ significantly.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters for military and commercial use. This model belongs to their standard cavity filter lineup. The company offers custom design services based on engineering databases. ISO 9001:2015 certification indicates quality management standards.

Replacement Considerations

AE1370B11201 is a listed alternative but uses LC technology instead of cavity construction. Verify electrical equivalence before substitution. No other direct substitutes are publicly confirmed.
