AE1437B11861

Overview

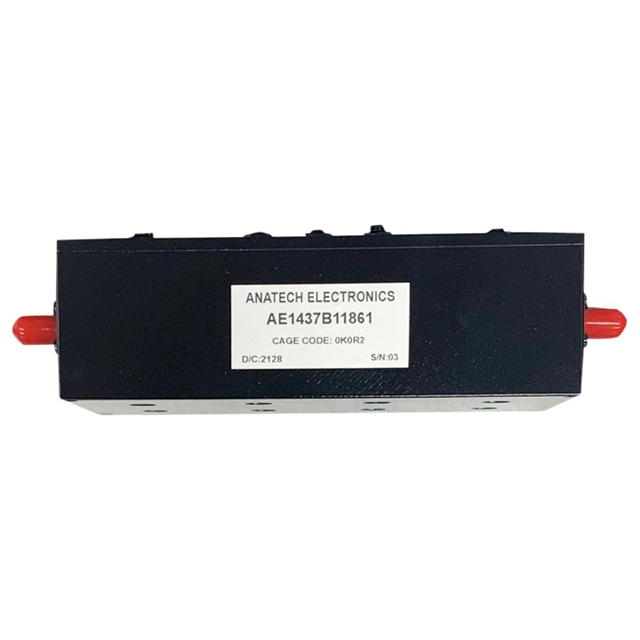

The AE1437B11861 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 1.4375 GHz and provides a bandwidth of 125 MHz. The component exhibits an insertion loss of 1 dB. It is designed for chassis mounting and utilizes SMA connectors for interface connections.

Feature Summary

• Cavity construction for stable RF performance
• Bandpass filtering characteristic centered at 1.4375 GHz
• Chassis mount configuration for secure installation

Applications

• RF signal processing systems
• Microwave communication equipment
• Test and measurement instrumentation

Procurement Notes

Verify the specific datasheet version for the AE1437B11861 to confirm detailed electrical specifications such as return loss, isolation, and power handling capabilities. Ensure that the SMA connector type and chassis mounting dimensions align with the system requirements before procurement.

Selection Notes

Select this component when a fixed center frequency of 1.4375 GHz with a 125 MHz bandwidth is required. The chassis mount style and SMA interfaces dictate the mechanical integration constraints. Consider the 1 dB insertion loss in link budget calculations.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of RF and microwave filters. The company produces various filter types including bandpass, low pass, and notch filters. This model belongs to their cavity filter product line, which typically offers high performance in demanding RF environments.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Custom designs or spec matching may be available through the manufacturer's engineering database if exact replacement is required.
