AE15000SSL1028

Overview

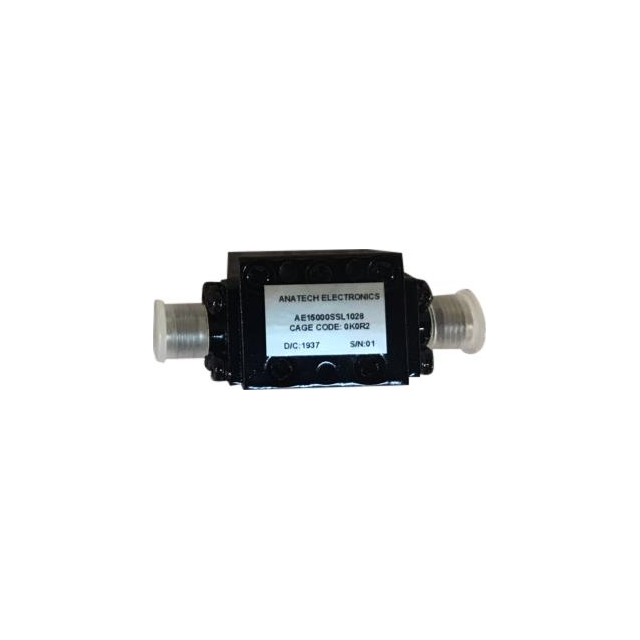

The AE15000SSL1028 is a low-pass RF filter module manufactured by Anatech Electronics Inc. It features a cutoff frequency of 15 GHz and utilizes SMA connectors for interface. The internal architecture employs suspended stripline technology, designed to provide effective signal filtering in radio frequency applications.

Feature Summary

• Suspended stripline construction for stable RF performance
• Low-pass filter topology with 15 GHz cutoff specification
• Integrated SMA connector interfaces for direct system integration

Applications

• Radio frequency signal conditioning
• Test and measurement equipment filtering
• Communication system component integration

Procurement Notes

Verify the specific datasheet version for precise insertion loss and return loss parameters before integration. Confirm that the SMA connector gender and mating requirements align with the host system design. Ensure environmental conditions match the component's operational specifications.

Selection Notes

Select this module when a 15 GHz low-pass characteristic is required within an RF chain. The suspended stripline design offers distinct advantages over planar technologies for high-frequency stability. Evaluate connector compatibility and physical footprint constraints against the target assembly.

Part Context

Anatech Electronics Inc. specializes in microwave and millimeter-wave components. This part belongs to their line of discrete RF filters utilizing advanced transmission line structures. The product series focuses on high-performance filtering solutions for demanding electronic environments.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Cross-referencing requires matching the 15 GHz cutoff, SMA interface, and suspended stripline construction characteristics.
