AE1500B11711

Overview

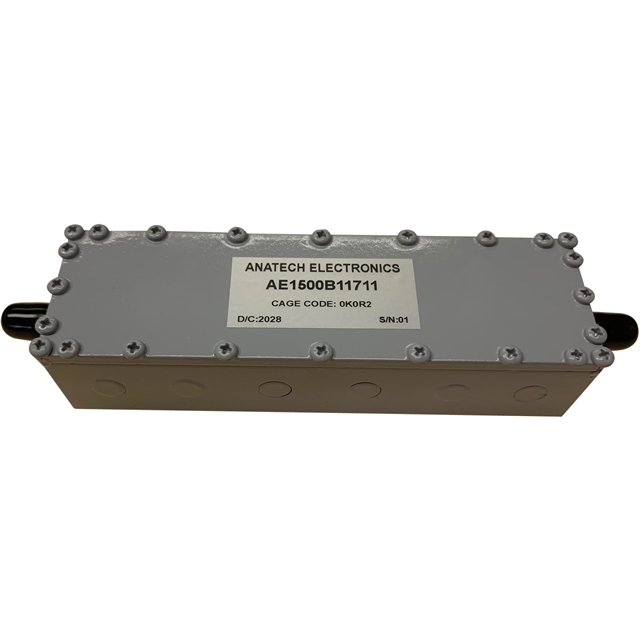

The AE1500B11711 is a cavity band pass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 1.5 GHz and provides a bandwidth of 140 MHz. The component features an insertion loss of 1.25 dB. This module is designed for radio frequency applications requiring precise signal filtering within the specified frequency range.

Feature Summary

• Cavity construction for stable RF performance
• Band pass filtering capability at 1.5 GHz
• Module form factor for integration

Applications

• Radio frequency signal processing
• Telecommunications systems
• RF test and measurement equipment

Procurement Notes

Verify the specific electrical parameters against the official manufacturer datasheet before procurement. Confirm that the 1.5 GHz center frequency and 140 MHz bandwidth align with system requirements. Ensure compatibility with existing RF infrastructure and check for any specific handling or mounting instructions provided in the technical documentation to guarantee proper installation and performance.

Selection Notes

Select this component when a fixed 1.5 GHz band pass filter with 140 MHz bandwidth is required. Consider the 1.25 dB insertion loss impact on system gain. Evaluate if the cavity module form factor fits the physical constraints of the assembly. Compare against other Anatech models if different frequencies or bandwidths are needed.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters, including standard and custom designs. The AE1500B11711 belongs to their line of cavity band pass filters, which are utilized in military and commercial applications. The company focuses on designing components that meet specific RF specifications for various industries.

Replacement Considerations

No public confirmed substitute part numbers are available for the AE1500B11711. Users should consult Anatech Electronics directly for potential alternatives or custom design options if this specific model is unavailable.
