Product Detailed Parameters
- Description：RF FILTER LOW PASS 150MHZ MODULE
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：150MHz (Cutoff)
- Bandwidth：-
- Filter Type：Low Pass
- Ripple：-
- Insertion Loss：0.75dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：4.000" L x 2.000" W (101.60mm x 50.80mm)
- Height (Max)：1.000" (25.40mm)
Download product information
Overview

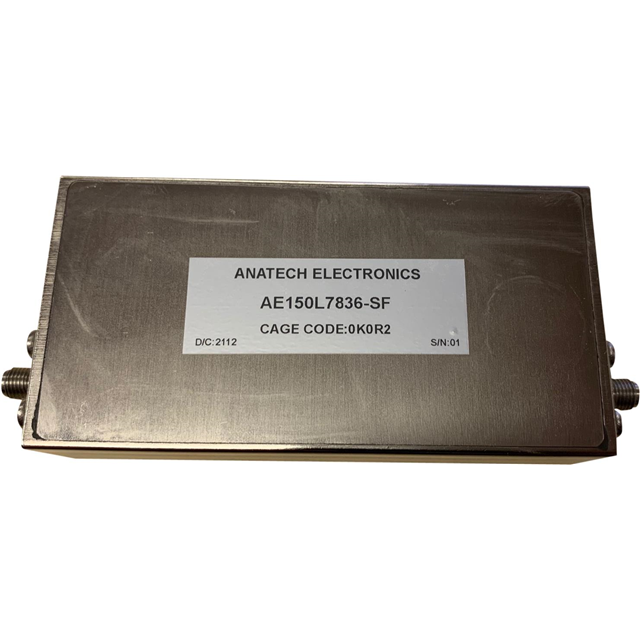

The AE150L7836-SF is a 150 MHz LC low-pass RF filter module manufactured by Anatech Electronics Inc. It features SMA female connectors and operates within a DC to 150 MHz passband. Key electrical specifications include an insertion loss of less than 0.75 dB, a return loss exceeding 20 dB, and signal rejection of at least 50 dB at frequencies above 299.994 MHz. The component is designed for radio frequency applications requiring precise signal filtering.
Feature Summary
- LC low-pass filter topology for RF signal conditioning
- SMA female connector interface for modular integration
- High rejection characteristics above cutoff frequency
Applications
- Radio frequency signal processing systems
- Communication equipment input/output stages
- Test and measurement instrumentation filters
Procurement Notes
Verify the specific datasheet version with Anatech Electronics Inc. to confirm mechanical dimensions and environmental ratings. Ensure SMA connector compatibility with existing system interfaces. Confirm operating temperature ranges match application requirements before procurement.
Selection Notes
Select this component when a 150 MHz cutoff frequency is required with low insertion loss. Consider the SMA-F interface for standard RF connections. Evaluate the 50 dB rejection specification against system noise floor requirements to ensure adequate signal isolation.
Part Context
This part belongs to Anatech's LC low-pass filter series, which includes variants like the AE16L7831. These modules are designed for robust RF performance in industrial and communication environments. The AE150L7836-SF specifically targets higher frequency applications compared to lower cutoff models in the same family.
FAQ
What is the maximum rejection level specified for this filter?
The filter provides a rejection of at least 50 dB at frequencies greater than 299.994 MHz.
Does the AE150L7836-SF support high power handling?
Specific power handling ratings are not explicitly detailed in the provided summary data; consult the official datasheet for thermal and power limits.
