AE15125B11042

Overview

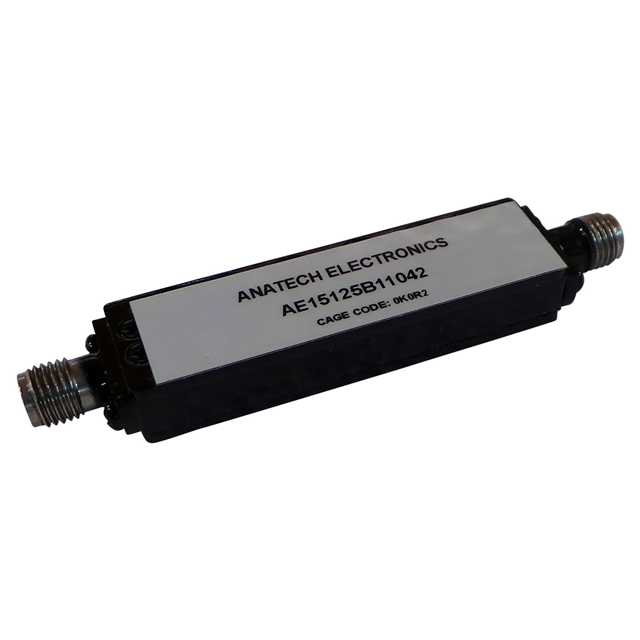

The AE15125B11042 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 15125 MHz and provides a bandwidth of 400 MHz, covering a range from 14925 to 15325 MHz. The component features SMA connectors and exhibits an insertion loss of less than or equal to 2.0 dB, with ripple specified at less than or equal to 1.0 dB.

Feature Summary

• Cavity construction for stable RF performance
• Bandpass filtering capability centered at 15125 MHz
• Integrated SMA connectors for signal interface

Applications

• Radio frequency signal processing systems
• Microwave communication equipment
• Test and measurement instrumentation

Procurement Notes

Verify the specific datasheet version for the AE15125B11042 to confirm exact electrical tolerances and connector specifications before integration. Ensure that system requirements align with the 400 MHz bandwidth and 2.0 dB insertion loss limits. Confirm physical dimensions and mounting requirements match the design constraints. Validate supplier authenticity through authorized channels to guarantee component quality and traceability.

Selection Notes

Select this component when a fixed center frequency of 15125 MHz is required with a 400 MHz passband. Consider the cavity technology for applications demanding low ripple and controlled insertion loss. Evaluate the SMA interface compatibility with existing circuitry. Assess whether the fixed frequency specification meets the system's spectral allocation needs without requiring tunable alternatives.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of RF and microwave filters. This company produces various filter types including bandpass, lowpass, and notch filters. The AE15125B11042 represents their cavity filter product line, designed for high-performance radio frequency applications requiring precise frequency selection and signal integrity.

Replacement Considerations

No public confirmed substitute part numbers are available for the AE15125B11042. Custom designs may be requested if exact matches are unavailable.
