Product Detailed Parameters
- Description：RF FILTER BAND PASS 1.542GHZ MOD
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：1.542GHz Center
- Bandwidth：36MHz
- Filter Type：Band Pass
- Ripple：-
- Insertion Loss：0.7dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：6.000" L x 2.250" W (152.40mm x 57.15mm)
- Height (Max)：1.250" (31.75mm)
Download product information
Overview

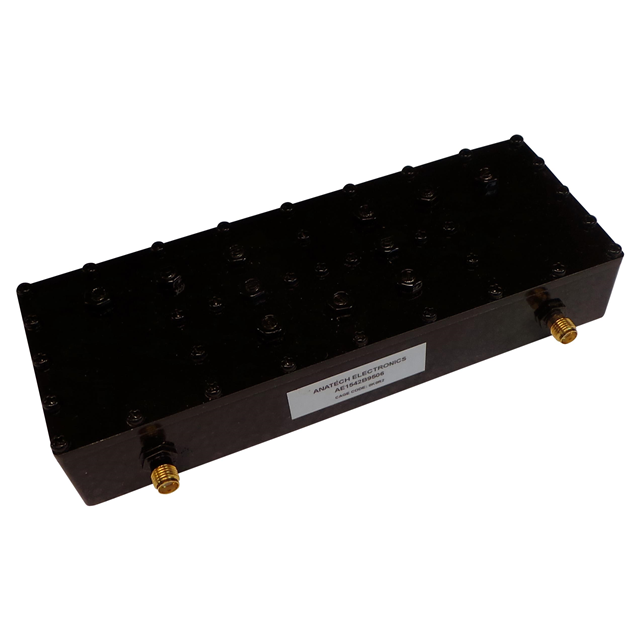

The AE1542B9506 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 1.542 GHz and provides a bandwidth of 36 MHz. The component features an insertion loss of 0.7 dB and utilizes SMA connectors for interface connectivity. This module is designed for radio frequency applications requiring precise signal filtering within the specified frequency range.
Feature Summary
- Cavity construction for stable RF performance
- Bandpass filtering capability at 1.542 GHz
- SMA connector interface
Applications
- Radio frequency signal processing
- Communication system filtering
- RF module integration
Procurement Notes
Verify the specific datasheet version and connector orientation prior to procurement. Confirm that the SMA connector type matches the system requirements. Ensure environmental specifications align with the intended deployment conditions. Cross-reference the part number with official manufacturer documentation to confirm current production status and availability constraints.
Selection Notes
Select this component when a 1.542 GHz center frequency with 36 MHz bandwidth is required. Consider the 0.7 dB insertion loss specification for system budget calculations. Verify compatibility with SMA interfaces. Evaluate cavity construction benefits against size constraints. Compare against alternative filters if different bandwidth or frequency specifications are needed.
Part Context
Anatech Electronics Inc. specializes in RF and microwave filters, including bandpass, low pass, and high pass designs. The company offers both standard and custom solutions for military and commercial applications. The AE1542B9506 represents their cavity filter technology focused on precision frequency selection.
Replacement Considerations
No public confirmed substitute part numbers are available for this specific model. Custom design services may be required if exact replacement is not feasible. Consult manufacturer engineering database for spec-matched alternatives.
