AE15550B10783

Overview

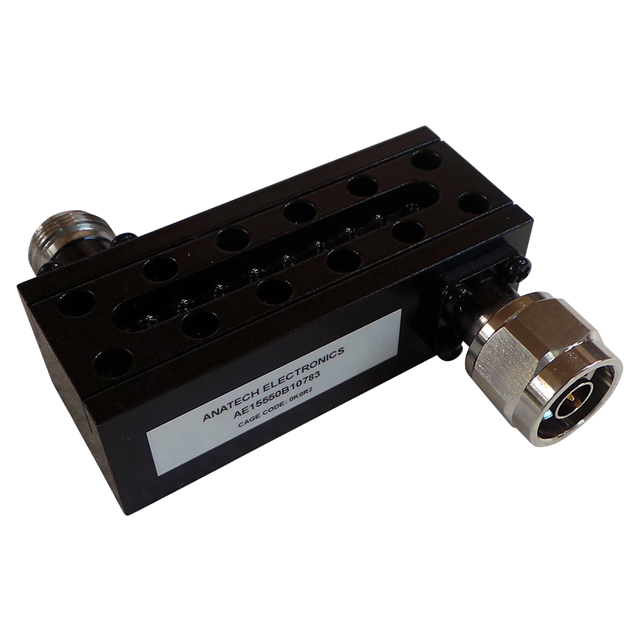

The AE15550B10783 is a band pass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 15.55GHz and provides a bandwidth of 400MHz. The component features an insertion loss of 1dB and ripple of 0.5dB. Its operational range spans from 15350MHz to 15750MHz. This module is designed for radio frequency applications requiring precise signal filtering within the specified microwave spectrum.

Feature Summary

• Band pass filtering capability centered at 15.55GHz
• Defined 400MHz operational bandwidth
• Low insertion loss performance
• Controlled passband ripple

Applications

• AN/SPN41 radar system components
• Military radio frequency equipment
• Commercial RF filter assemblies

Procurement Notes

Verify part number authenticity against manufacturer records. Confirm technical specifications match application requirements, specifically the 15.55GHz center frequency and 400MHz bandwidth. Ensure compatibility with existing RF systems. Check for any specific handling or installation guidelines provided in official documentation before integration.

Selection Notes

Select this component when a fixed 15.55GHz band pass filter is required. Consider the 400MHz bandwidth and 1dB insertion loss constraints. Verify mechanical interface compatibility. Evaluate if the specific frequency range meets system needs compared to tunable alternatives.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters for military and commercial sectors. The AE15550B10783 falls under their standard filter offerings. It serves as a critical component in specialized communication and radar systems requiring stable frequency selection.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Custom design may be required if exact specifications cannot be met by available stock.
