AE1574WN2218

Overview

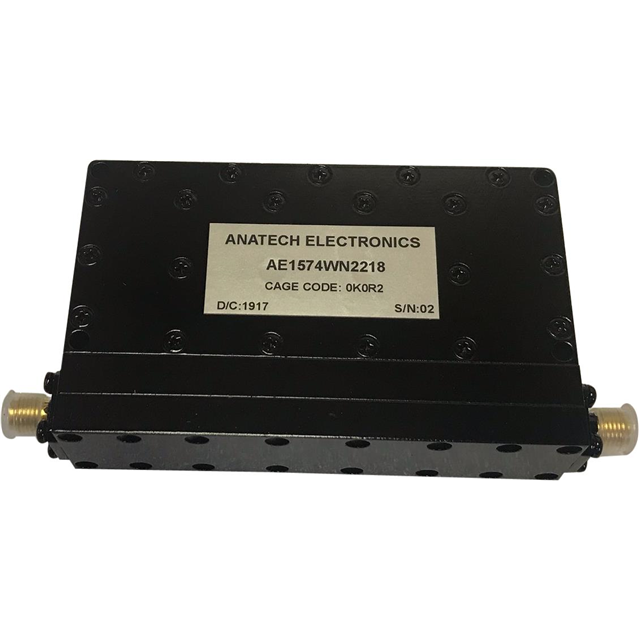

The AE1574WN2218 is a waveguide band stop filter manufactured by Anatech Electronics Inc. It features a center frequency of 1574 MHz with a bandwidth of 19 MHz and an attenuation of 1.2 dB. The device handles 20W of power and operates in passbands from DC to 1550 MHz and 1605 to 4500 MHz. Dimensions are 85 x 52.5 x 20 mm.

Feature Summary

• Waveguide band stop filter design
• SMA connector interface
• Chassis mount module configuration

Applications

• RF signal filtering
• Radio frequency systems
• Waveguide applications

Procurement Notes

Verify exact specifications against the official product datasheet before procurement. Confirm package details, including SMA connectors and chassis mount requirements. Ensure compatibility with system power handling needs of 20W. Check for RoHS applicability status as indicated in manufacturer documentation.

Selection Notes

Select this component for applications requiring a specific notch at 1574 MHz. Consider the 19 MHz bandwidth and 1.2 dB attenuation characteristics. Verify physical space constraints against the 85 x 52.5 x 20 mm dimensions. Ensure the SMA connector type matches existing system interfaces.

Part Context

This part belongs to the RF Filters category produced by Anatech Electronics Inc. It is classified as a module with SMA connectors. The product status is listed as active. It serves as a specialized component for radio frequency filtering tasks within electronic systems.

Replacement Considerations

No public confirmed substitute part numbers are available for this component. Exact specifications should be obtained from the product data sheet when considering alternatives.

FAQ

What is the power handling capability?

The device handles 20W of power.

What are the passband frequencies?

Passbands are DC to 1550 MHz and 1605 to 4500 MHz.
