AE1593B10296

Overview

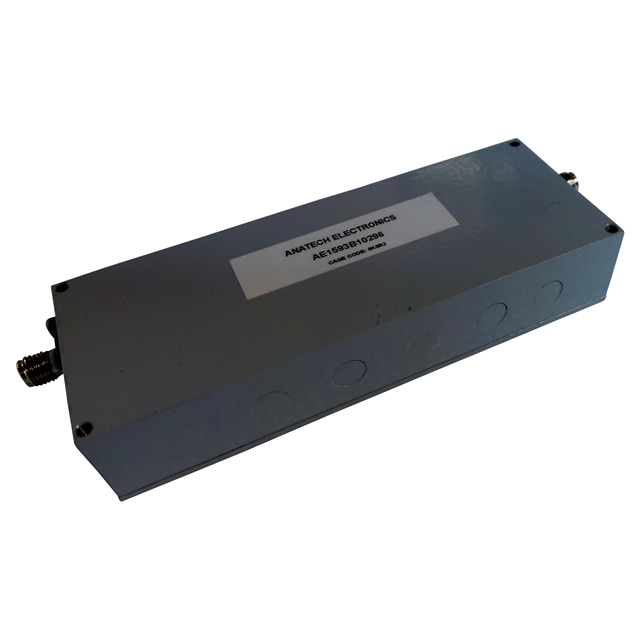

The AE1593B10296 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 1593 MHz and provides a bandwidth of 150 MHz, covering the passband from 1518 to 1668 MHz. The component features an input/output impedance of 50 Ohms and exhibits a ripple of 0.2 dB. It is housed in a chassis mount module package measuring 4.000 inches in length and 1.500 inches in width, with a maximum height of 0.750 inches (19.05 mm). The unit utilizes SMA connectors for interface connections.

Feature Summary

• Cavity construction designed for stable radio frequency filtering performance
• Chassis mount module format suitable for panel integration
• SMA connector interfaces for standardized signal transmission

Applications

• Radio frequency signal processing systems
• Communication equipment requiring specific frequency band isolation
• Test and measurement instrumentation

Procurement Notes

Verify the exact part number AE1593B10296 against manufacturer documentation to ensure correct specifications. Confirm that the SMA connector type and chassis mount dimensions match your system requirements. Check for RoHS compliance status if environmental regulations apply to your deployment. Ensure the 50 Ohm impedance aligns with your circuit design parameters before procurement.

Selection Notes

Select this component when a fixed center frequency of 1593 MHz is required. The 150 MHz bandwidth defines the operational range for signal passage. Consider the physical dimensions of 4.000 x 1.500 x 0.750 inches for enclosure space planning. The 50 Ohm impedance must match the source and load characteristics of the connected RF chain to minimize reflection losses.

Part Context

This component belongs to the category of RF filters produced by Anatech Electronics Inc. It is specifically identified as a cavity bandpass filter, distinguishing it from other filter technologies like SAW or ceramic. The product line focuses on discrete RF components for specialized frequency control applications.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Cross-referencing requires matching the 1593 MHz center frequency, 150 MHz bandwidth, 50 Ohm impedance, and SMA connector interface exactly.
