Product Detailed Parameters
- Description：RF FILTER LOW PASS 15MHZ BNC
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：15MHz (Cutoff)
- Bandwidth：-
- Filter Type：Low Pass
- Ripple：-
- Insertion Loss：0.5dB
- Mounting Type：Chassis Mount
- Package / Case：BNC In-Line Module
- Size / Dimension：2.000" L x 2.000" W (50.80mm x 50.80mm)
- Height (Max)：1.612" (40.94mm)
Download product information
Overview

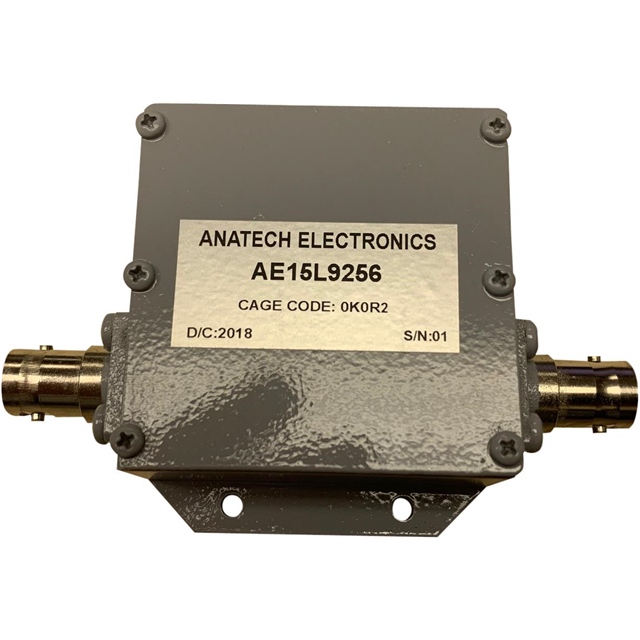

The AE15L9256 is a low-pass RF filter manufactured by Anatech Electronics Inc. It features a cutoff frequency of 15 MHz and operates with an insertion loss of 0.5 dB. The component utilizes BNC connectors for in-line module integration, providing a return loss of 16 dB. This connectorized design supports precise signal filtering applications within the specified frequency range.
Feature Summary
- Low-pass filtering capability with a 15 MHz cutoff frequency
- Connectorized form factor utilizing BNC interfaces
- Designed for in-line module integration
Applications
- RF signal conditioning
- Microwave system filtering
- Military and commercial electronic equipment
Procurement Notes
Verify the specific datasheet version and connector orientation before procurement. Confirm that the BNC interface type matches the system requirements. Ensure the operating environment aligns with the manufacturer's specifications for RF filters. Cross-reference the part number to avoid confusion with similar models in the Anatech product line.
Selection Notes
Select this component when a 15 MHz low-pass characteristic is required. The BNC connectorization suits test and measurement setups or modular systems. Consider the 0.5 dB insertion loss and 16 dB return loss for signal integrity needs. Verify compatibility with existing RF infrastructure before final selection.
Part Context
Anatech Electronics Inc. specializes in RF and microwave filters for military and commercial sectors. Founded in 1990, the company designs standard and custom components. The AE15L9256 belongs to their low-pass filter portfolio, supporting various electronic applications requiring precise frequency control.
Replacement Considerations
No public substitute part numbers are confirmed for this model. Consult Anatech Engineering for spec-matched alternatives if direct replacement is unavailable.
FAQ
What is the cutoff frequency of the AE15L9256?
The cutoff frequency is 15 MHz.
What type of connectors does the AE15L9256 use?
It uses BNC connectors for in-line module integration.
