AE16500B11053

Overview

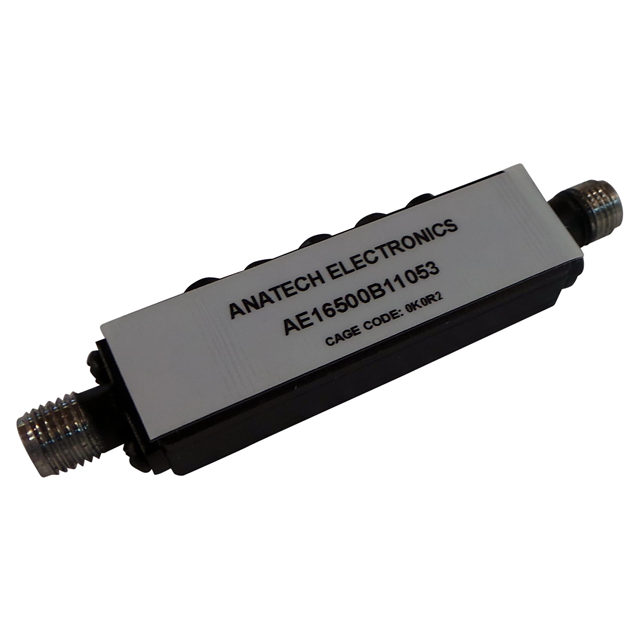

The AE16500B11053 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 16500 MHz and a bandwidth of 400 MHz, covering a range from 16300 to 16700 MHz. The component features SMA connectors and maintains an insertion loss of less than or equal to 3.0 dB with ripple of less than or equal to 0.5 dB. Its physical dimensions are 1.600 inches in length and 0.710 inches in width.

Feature Summary

• Cavity construction for stable RF filtering performance
• SMA connector interface for modular integration
• RoHS compliant manufacturing

Applications

• Radio frequency signal processing
• Microwave communication systems
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version when ordering to ensure compatibility with current design requirements. Confirm that the SMA connector type matches the system interface. Check RoHS compliance status if required by environmental regulations. Ensure the operating frequency range aligns with the application's spectral needs before finalizing procurement.

Selection Notes

Select this component when a fixed 16.5 GHz center frequency with 400 MHz bandwidth is required. The low insertion loss specification supports efficient signal transmission. The cavity design offers robust performance in microwave environments. Verify mechanical fit within the enclosure given the specific module dimensions.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of RF and microwave filters. This company produces various filter types including bandpass, low pass, and high pass configurations. The AE16500B11053 represents their cavity-based filtering solutions for precise frequency selection.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
