AE168N2226

Overview

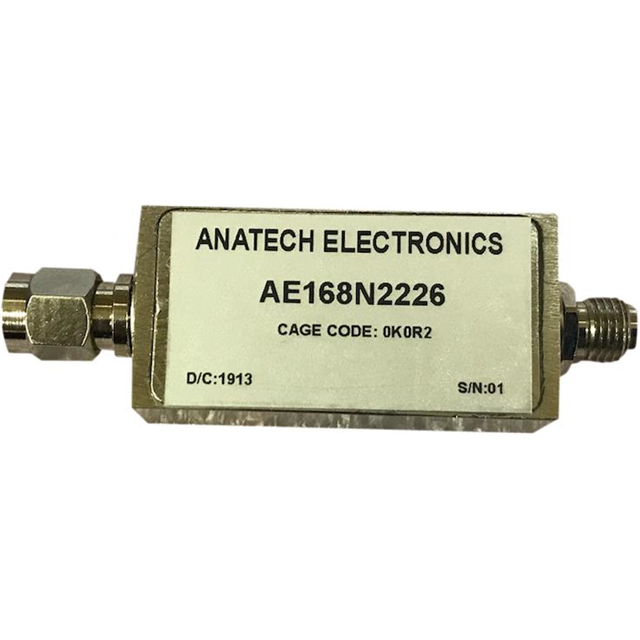

The AE168N2226 is a bandstop RF filter manufactured by Anatech Electronics Inc. It features a center frequency of 168.88 MHz with a bandwidth of 1 MHz. The component exhibits an insertion loss of 3.5 dB and utilizes SMA connectors for interface. Designed as a module, it employs LC notch filter technology to attenuate specific frequencies while passing others.

Feature Summary

• Bandstop functionality targeting a specific notch frequency
• LC notch filter construction for signal attenuation
• SMA connector interface for integration

Applications

• RF signal processing systems requiring frequency rejection
• Microwave communication equipment
• Test and measurement instrumentation

Procurement Notes

Verify the exact datasheet version and mechanical outline drawings provided by Anatech Electronics Inc. before procurement. Confirm that the SMA connector type and chassis mounting requirements align with system design specifications. Ensure compliance with EAR99 classification and RoHS status as documented in official manufacturer literature.

Selection Notes

Select this component when a fixed 168.88 MHz notch filter is required. Consider the 1 MHz bandwidth and 3.5 dB insertion loss against system sensitivity requirements. Verify chassis mounting compatibility and SMA connector availability within the assembly environment.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters, including notch, low-pass, and high-pass designs. The AE168N2226 belongs to their LC Notch Filter series, which covers frequencies from 5 to 1850 MHz. These components are designed for precise frequency control in specialized electronic applications.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Custom design or spec matching services may be requested directly from the manufacturer if alternatives are needed.
