Product Detailed Parameters
- Description：RF FILTER BAND PASS 1.732GHZ MOD
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：1.732GHz Center
- Bandwidth：45MHz
- Filter Type：Band Pass
- Ripple：0.1dB
- Insertion Loss：1dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：4.125" L x 1.500" W (104.78mm x 38.10mm)
- Height (Max)：1.000" (25.40mm)
Download product information
Overview

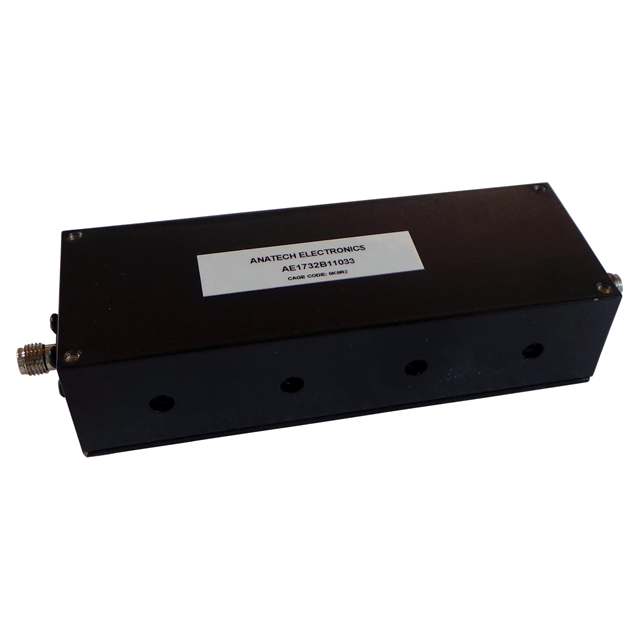

The AE1732B11033 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc., designed for the 1710-1755 MHz frequency range. It features a center frequency of 1732.5 MHz with a bandwidth of 45 MHz. The component provides a passband insertion loss of 1 dB and a return loss of at least 18 dB. It utilizes SMA connectors for interface connections, ensuring reliable signal transmission in radio frequency applications.
Feature Summary
- Cavity construction for high performance
- Bandpass filtering capability
- SMA connector interface
Applications
- Radio frequency signal processing
- Telecommunications systems
- Military communication equipment
Procurement Notes
Verify the specific datasheet version to confirm electrical tolerances and mechanical dimensions. Ensure compatibility with SMA connector types and mounting requirements. Confirm that the operating temperature range meets system specifications. Check for any recent design changes or obsolescence notices from Anatech Electronics Inc. before finalizing procurement plans.
Selection Notes
Select this component when a narrow bandpass filter is required around 1.73 GHz. Consider the 45 MHz bandwidth and low insertion loss for sensitive RF chains. Evaluate the cavity size against available space constraints. Verify that the SMA interface matches existing board layouts. Compare performance metrics against alternative filters if stricter attenuation specs are needed.
Part Context
Anatech Electronics Inc. specializes in RF and microwave filters for military and commercial use. This part belongs to their standard cavity filter line, offering reliable performance in demanding environments. The company focuses on precision engineering for signal integrity.
Replacement Considerations
No public confirmed substitute part numbers are available for direct replacement. Consult Anatech Electronics Inc. for equivalent models or custom solutions if this part is unavailable.
FAQ
What is the center frequency of the AE1732B11033?
The center frequency is 1732.5 MHz.
What type of connectors does this filter use?
It uses SMA connectors.
